|Product Name:||Electric Heating Steam Boiler||Rated Evaporation:||0.15-0.5T/H|
|Rated Working Pressure:||0.7/1.0Mpa||Staturated Steam Temperature:||170/193℃|
|Input Power:||108-360KW||Input Current:||162-540A|
|Dimension(l*w*h):||Depends||Usage:||Industrial,home&industrial Heating,Steam Outputing|
electric steam boiler,
electric fired boiler
Fully Automatic 150kg 300kg 500kg Electric Steam Boiler Price
► Flexible working mode, can be set to manual or automatic mode; With power switching function, the power can be adjusted according to the actual steam demand, so that the service time and frequency of all contactors are the same, and the service life of the equipment can be improved.
►Electric steam boiler, In operation,there are multiple protection functions ,such as phase sequence of power grid, overpressure, ultra-high liquid level, water shortage, overcurrent, leakage, short circuit of sensor, circuit break, timeout of water replenishing, and overtemperature of electric control box. It is safe and reliable.
► Based on PLC and touch screen control, man-machine dialogue, one-click start, through PLC data communication, can achieve remote monitoring.
► Vertical structure electric steam boiler compact and beautiful, elegant shape, bright color, small floor area for easy installation, the modular design is for multiple parallel use.
► Each group of electric heating element is connected with concentrated bundle flange, independent setting, high mechanical strength, safe and reliable. Easy to replace and long service life.

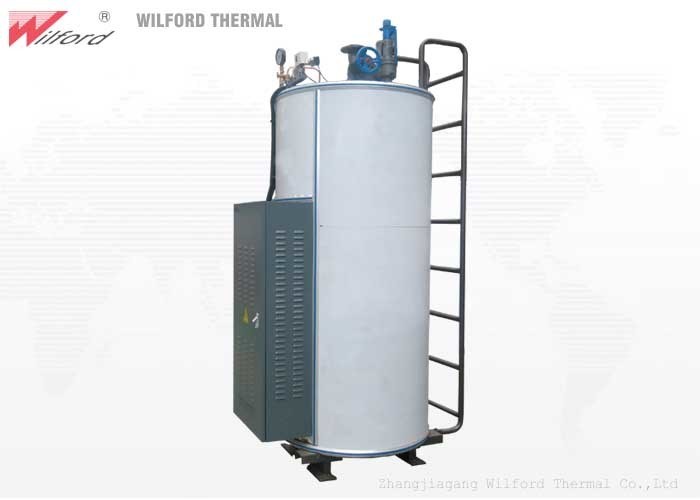

|LDR Vertical Electric Heating Steam Boiler|
|Rated working pressure||MPa||0.7/1.0||0.7/1.0||0.7/1.0||0.8/1.0|
|Staturated steam temperature||℃||170/184||170/184||170/184||175/184|
|Rated pressure||V||3N AC 50Hz 380V|
|a Main steam valve diameter||DN||25||25||32||50|
|b Safety valve diameter||DN||25||25||25||40|
|c Inlet diamater||DN||15||15||25||25|
|d Blowoff Valve diameter||DN||25||25||40||40|
For boiler steam capacity up to or more than 300kg/hr ,the structure is seperated --boiler with seperate electrical control cabinet.
|We can provide customized products for specific power supply in the world.|
♦ After precision calculation&design, boiler could quickly and efficiently reach work pressure.
♦ Using low heat load surface heating elements-- not easily melted or softened.
♦ Each component with water pressure and withstand voltage test.
♦ Boiler could immediately work after connecting to power and water supply.
♦ Nearly 100% thermal efficiency--quiet, clean,more in line with environmental requirements.
Product detail drawing
• Pharmaceutical factory, packaging factory, building material factory, paint factory, beauty salon, bath center, sauna, steam room, baby
swimming pool, etc.Hotels, restaurants, hotels, canteens, restaurants, food factories, beverage factories, soy products factories, canneries,
• Pre-sale,sale.after sales service process
• 7*24 hour uninterrupted service
• Professional engineer service team is always ready
Q : Are you a factory or a trading company?
A : We are a 20 years old industrial boiler factory, specializing in gas oil diesel electric fired boilers.
Q : What is the Warranty for the boilers?
A : Our steam boiler warranty is one year, During the warranty period, any parts damaged, you can get a new parts for free.
Q : How long should we wait for delivery?
A : Usually it will take about 35-45 days for pressured boilers, If you need to change the voltage or pressure, it need more time.
Q : What about your payment term?
A : Usually it would be 30% deposit payment, 70% balance before delivery. We accept T/T, L/C and other payment way.
