Cleaning Line Energy Efficient Electric Boiler Customized Dimension High Mechanical Strength

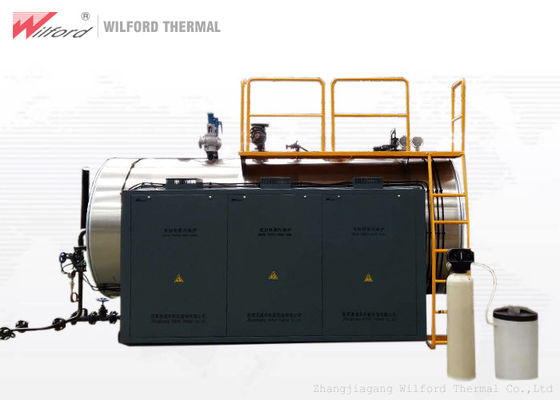

Large Image : Cleaning Line Energy Efficient Electric Boiler Customized Dimension High Mechanical Strength

Product Details:

Place of Origin:	China
Brand Name:	WILFORD
Certification:	CE
Model Number:	WDR

Payment & Shipping Terms:

Minimum Order Quantity:	1 stand
Price:	Negotiable
Packaging Details:	Packing in wooden box
Delivery Time:	15-20 working days
Payment Terms:	L/C, T/T
Supply Ability:	50 stand/stands per Month

Contact Now

Cleaning Line Energy Efficient Electric Boiler Customized Dimension High Mechanical Strength

Description

Rated Evaporation:	0.75-3T/h	Rated Voltage:	3N AC 50HZ 380V
Main Steam Valve Diameter:	40/65/80DN	Dimension:	Customization
Afer-sales Service Provided:	Overseas Third-party Support Available	Weight:	1.6/2.0-3.5/4.1T
High Light:	electric steam boiler , electric heating steam boiler

Energy - Saving Electric Steam Boiler For The Cleaning Line

Product introduction

This product is a high-power steam boiler with a thermal efficiency of almost 99%, clean and environmentally friendly.

Its electrical components are brazed, installed independently, easy to replace, and extend the service life.

Electromechanical split installation, which is good for heat dissipation.

There are multiple protection functions such as grid phase sequence, overpressure, ultra-high liquid level, water shortage, overheating and leakage.

Built-in PID design pressure control mode, which can realize the smooth output of pressure under various working conditions.

Based on PLC programmable control and display screen, realize man-machine interface, realize remote control through data communication.

Parameter

Type			WDR0.75	WDR1	WDR1.5	WDR2	WDR3	WDR4
Project		Unit	WDR0.75	WDR1	WDR1.5	WDR2	WDR3	WDR4
Rated evaporation		t/h	0.75	1	1.5	2	3	4
Rated working pressure		MPa	1.0/1.25	1.0/1.25	1.0/1.25	1.0/1.25	1.0/1.25	1.0/1.25
Staturated steam temperature		℃	184/193	184/193	184/193	184/193	184/193	184/193
Input Power		KW	540	720	1080	1440	2160	2880
Input current		A	810	1080	1620	2160	3240	4320
Rated pressure		V	3N AC 50Hz 380V
Power×Group		KW×P	36×15	36×20	36×30	36×40	36×60	36×80
Dimension
a Main steam valve diameter		DN	40	40	65	65	80	100
b Safety valve diameter		DN	2×40	2×40	2×40	2×40	2×40	2×50
c Inlet diamater		DN	25	25	25	25	40	40
d Blowoff Valve diameter		DN	40	40	40	40	40	40
Overall size	L	mm	2800	2950	3450	3500	3950	4100
	L1	mm	2400	2500	3050	2880	3200	3550
	W	mm	1800	1900	2180	2000	2100	2300
	W1	mm	1550	1600	1430	1880	1980	2120
	H	mm	1550	1600	2100	2500	2650	2980
	H1	mm	1300	1350	1850	1900	2100	2200
Electrical control cabinet size	ALength	mm	1200	1200	1500	2200	2000(2)	2200(2)
	BWidth	mm	500	600	600	700	700	700
	CHight	mm	1800	1800	2000	2000	2200	2200
Weight		T	1.6/2.0	1.8/2.2	2.2/2.7	2.8/3.3	3.5/4.1	4.5/5.2
