Product Details:
Place of Origin: China
Brand Name: WILFORD
Certification: CE
Model Number: CLHS
Payment & Shipping Terms:
Minimum Order Quantity: 1 stand
Price: Negotiable
Packaging Details: Packing in wooden box
Delivery Time: 15-20 working days
Payment Terms: L/C, T/T
Supply Ability: 15 stand/stands per Month

Home / School Gas Fired Hot Water Boiler , Natural Gas Water Boiler Easy Installation

Description
Rated Thermal Power: 0.06-0.47MW Total Heating Capacity: 50000-400000kcal
Water Inlet Diameter: 50/65/80DN Water Outlet Diameter: 50/65/80DN
Voltage: 220-380V Weight: 270-980kg
High Light:

natural gas hot water boiler

,

gas powered water boiler





Easy Installation Natural Gas Fired Hot Water Boiler In Home / School





Product introduction



  • This is a green and environmentally friendly boiler equipment, three return design, shell boiler.



  • Its main structure is furnace, combustion chamber, shell, convection tube bundle and so on.



  • The application of the pipe has a special performance, that is, "self-cleaning", which can effectively improve the heat transfer effect and reduce the resistance.



  • Under normal pressure operation, the expansion tank is directly connected to the atmosphere, and there is no safety hazard.



  • The convection pipe has sufficient heat transfer and good effect; the burner has sufficient combustion and high efficiency.



  • This boiler is safe and reliable, with complete protection devices and long service life.




Parameter



Type CLHS0.06-95/70-Y.Q CLHS0.12-95/70-Y.Q CLHS0.17-95/70-Y.Q CLHS0.23-95/70-Y.Q CLHS0.35-95/70-Y.Q CLHS0.47-95/70-Y.Q
Project Unit
Rated thermal power MW 0.06 0.12 0.17 0.23 0.35 0.47
Total heat capacity 104kcal 5 10 15 20 30 40
Rated working pressure MPa Ordinary Pressure
Fuel consumption Light diesel oil kg/h 5.4 10.8 16.2 21.6 32.5 43.2
Natural gas Nm3/h 5.8 11.7 17.5 23.4 35 46.8
LPG Nm3/h 2.5 5 7.5 10 15 20
City gas Nm3/h 14.2 28.3 42.5 56.6 85 113.2
Water inlet diameter DN 50 65 65 65 65 80
Water outlet diameter DN 50 65 65 65 65 80
Blowoff valve diameter DN 25 25 25 25 25 40
Voltage V 220 220 220 220 380 380

Overall size
Length mm 800 980 1150 1250 1500 1550
Width mm 700 850 900 1000 1200 1250
Height mm 1300 1650 1800 1950 2000 2100
Weight kg 270 410 450 520 830 980




Advantage



1 . Vertical structure design


2 . Threaded convection pipe


3 . Foreign burners


4 . Reasonable internal structure


5 . Heated equilibrium, full heat transfer


6 . Small heat loss


7 . Energy saving, safety and safety

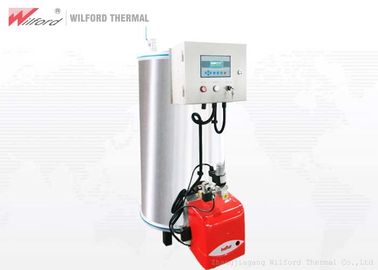

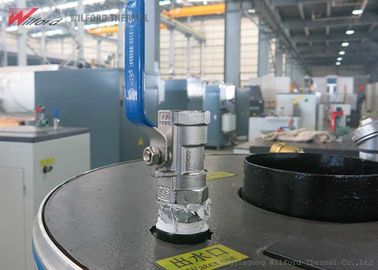

Product picture



Home / School Gas Fired Hot Water Boiler , Natural Gas Water Boiler Easy Installation 0
