Product Details:
|
| Rated Evaporation: | 10T/h | Rated Steam Pressure: | 0.7-2.5Mpa |
|---|---|---|---|
| The Rated Steam Temperature: | 170-226℃ | Feed Temperature: | 20-105℃ |
| Dimension(L*W*H): | Depends | Usage: | Rubber Industry |
| High Light: | biomass steam boiler,biomass pellet steam boiler |
||

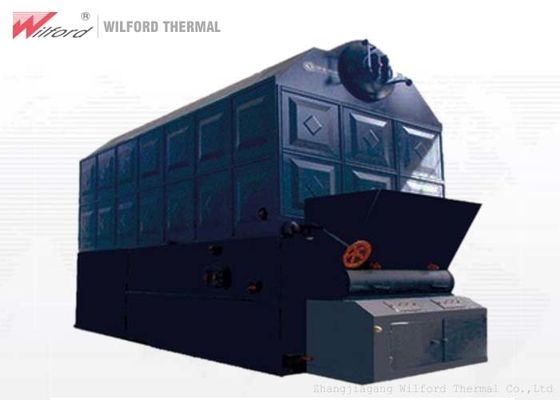

10 Tons Horizontal Biomass Fired Steam Boiler For Rubber Industry
Product introduction
The slag drop into the slag bucket,then been removed out furnace by by slagging machine at any time.
Parameter
| Type | DZL1 | DZL2 | DZL3 | DZL4 | DZL6 | DZL8 | DZL10 | ||
| Project | Unit | ||||||||
| The enaporation | T/h | 1 | 2 | 3 | 4 | 6 | 8 | 10 | |
| The rated steam pressure | Mpa | 0.7,1.0,1.25,1.6,2.5 | |||||||
| The rated steam temperature | ℃ | 170,184,194,203,226 | |||||||
| Feed temperature | ℃ | 20,60,105 | |||||||
| Avaible fuel | Ⅱ(AⅡ) | ||||||||
| Design the thermal efficiency | ％ | 80.2 | 80.1 | 80.3 | 80.6 | 80.3 | 80.5 | 80.6 | |
| The fuel consumption | Kg/h | 181 | 378.4 | 493 | 723 | 1089 | 1509 | 1750 | |
| The transport dimension L*W*H(mm) |
mm | 5200*2100*3000 | 5525*2440*3400 | 6300*2650*3400 | 6081*2575*3400 | 8000*2900*3550 | 7526*3340*4300 | 8980*3200*3550 | |
Advantage
1 . Arched tube sheet design
2 . The pipe is threaded
3 . Enhance heat transfer effect
4 . Strong adaptability to fuel
5 . Burning more fully
6 . Energy saving and safety
