0.06-0.58MW Gas Fired Hot Water Boiler

0.06-0.58MW Gas Fired Hot Water Boiler
0.06-0.58MW Gas Fired Hot Water Boiler 0.06-0.58MW Gas Fired Hot Water Boiler 0.06-0.58MW Gas Fired Hot Water Boiler 0.06-0.58MW Gas Fired Hot Water Boiler

Large Image :  0.06-0.58MW Gas Fired Hot Water Boiler

Product Details:
Place of Origin: China
Brand Name: WILFORD
Certification: CE
Model Number: CLHS
Payment & Shipping Terms:
Minimum Order Quantity: 1 stand
Price: Negotiable
Packaging Details: Export wooden Packing
Delivery Time: 15-20 working days
Payment Terms: L/C, T/T
Supply Ability: 10 stand/stands per Month

0.06-0.58MW Gas Fired Hot Water Boiler

Rated Thermal Power: 0.06-0.58MW Total Heating Capacity: 50000-500000kcal
Rated Working Pressure: Ordinary Pressure Water Inlet Diameter: 50-100DN
Voltage: 220-380V Style: Vertical
Output: Hot Water Fuel: Oil-fired,Gas-fired,natural Gas,light Oil
Condition: New Product Name: Gas Fired Hot Water Boiler
Application: Industrial Production,hot Water Supply After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

lpg hot water boiler


gas powered water boiler



Vertical Industrial Gas Fired Hot Water Boiler Output Hot Water



Product introduction


  • Smoke tubes add disturb fins inside , increasing heating area , self-clean for dust ,improving heat transfer effectiveness. Using high thermal resistance of insulation materials-minimum boiler heat losses.Industrial hot water boiler is three-pass all wet back shell type structure.Main body includs boiler shell, furnace, boiler smoke chamber and convection bank. convection smoke tube is made by threaded pipes, enhance heat transfer.


  • Fully automatic control, over-temperature stand by. Anti-freezing in cold winter night,automatic adjust heating supply temperature base on out door temperature ,which , maximum achieve energy saving .


  • Imported burner ,pressure spray ,complete burning ,low noise .Reduced combustion intensity ,decrease dust emissions ,output of harmful gases such as NOx emissions reduced to the minimum, meet serious environmental requirements.


  • Pressure connecting structure, safe, reliable, long service life. Multiple chain protection and self-test such as -over temperature ,water shortage ,overload, ignition failure, abnormal flameout, gas leakage. Expansion water tank directly connect to atmosphere,no potential safety problems under atmospheric pressure operation.




Type CLHS0.06-95/70-Y.Q CLHS0.12-95/70-Y.Q CLHS0.17-95/70-Y.Q CLHS0.23-95/70-Y.Q CLHS0.35-95/70-Y.Q CLHS0.47-95/70-Y.Q CLHS0.58-95/70-Y.Q
Project Unit
Rated thermal power MW 0.06 0.12 0.17 0.23 0.35 0.47 0.58
Total heat capacity 104kcal 5 10 15 20 30 40 50
Rated working pressure MPa Ordinary Pressure
Fuel consumption Light diesel oil kg/h 5.4 10.8 16.2 21.6 32.5 43.2 54
Natural gas Nm3/h 5.8 11.7 17.5 23.4 35 46.8 58.5
LPG Nm3/h 2.5 5 7.5 10 15 20 25
City gas Nm3/h 14.2 28.3 42.5 56.6 85 113.2 141.5
Water inlet diameter DN 50 65 65 65 65 80 100
Water outlet diameter DN 50 65 65 65 65 80 100
Blowoff valve diameter DN 25 25 25 25 25 40 40
Voltage V 220 220 220 220 380 380 380

Overall size
Length mm 800 980 1150 1250 1500 1550 1600
Width mm 700 850 900 1000 1200 1250 1450
Height mm 1300 1650 1800 1950 2000 2100 2500
Weight kg 270 410 450 520 830 980 1500




1 . The hot water boiler Output hot water

2 . The heating area is uniform and the heat loss is small

3 . Enhanced heat transfer effect

4. Reduce the thermal stress of the furnace

5. Long service life

6 .Vertical structure,save room and easily installation.


Product picture

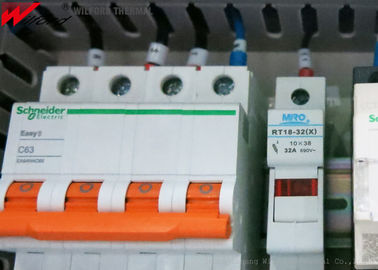

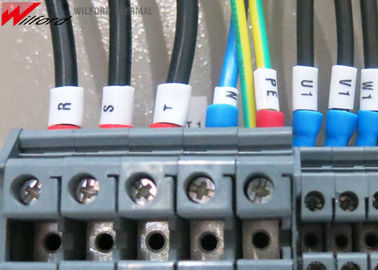

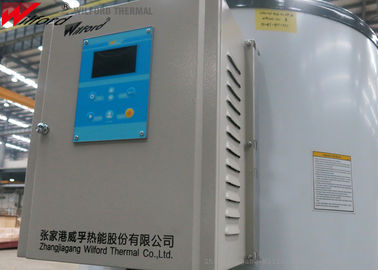

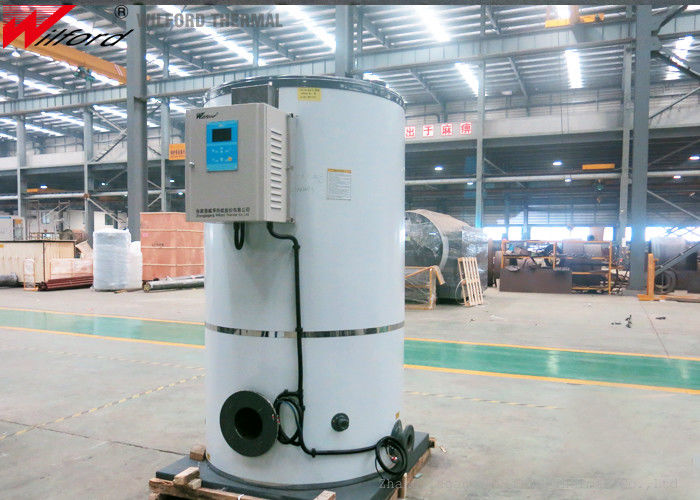

0.06-0.58MW Gas Fired Hot Water Boiler 0





0.06-0.58MW Gas Fired Hot Water Boiler 1





Q : Are you a factory or a trading company?

A : We are a 20 years old industrial boiler factory, specializing in gas oil diesel electric fired boilers.


Q : What is the Warranty for the boilers?


A : Our steam boiler warranty is one year, During the warranty period, any parts damaged, you can get a new parts for free.


Q : How long should we wait for delivery?


A : Usually it will take about 35-45 days for pressured boilers, If you need to change the voltage or pressure, it need more time.

Q : What about your payment term?

A : Usually it would be 30% deposit payment, 70% balance before delivery. We accept T/T, L/C and other payment way.
