Product Details:
|
Rated Evaporation: | 200-300kg/h | Rated Working Pressure: | 0.7Mpa |
---|---|---|---|
Staturated Steam Temperature: | 170℃ | Usage: | Steam Outputing |
Style: | Vertical | Fuel: | Oil-fired,Gas-fired,natural Gas,lpg |
Pressure: | Low Pressure | Type: | Natural Circulation |
Product Name: | Diesel Oil Fired Steam Boiler | Output: | Steam |
High Light: | 500Kg/H Gas Fired Steam Boiler,0.7Mpa Gas Fired Steam Boiler,0.7Mpa gas fired combi boiler |
500Kg/H Vertical stainless steel Steam Water Tube Boiler for drying
Industrial Steam Boiler introduction
Industrial Steam Boiler Parameter
Model | LSS0.05-0.7-Y.Q | LSS0.1-0.7-Y.Q | LSS0.125-0.7-Y.Q | LSS0.2-0.7-Y.Q | LSS0.25-0.7-Y.Q | LSS0.3-0.7-Y.Q | LSS0.5-0.7-Y.Q | ||
Project | Unit | ||||||||
Rated evaporation | Kg/h | 50 | 100 | 125 | 200 | 250 | 300 | 500 | |
Rated working pressure | MPa | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | |
Staturated steam temperature | ℃ | 170 | 170 | 170 | 170 | 170 | 170 | 170 | |
Fuel consumption | Light diesel oil | kg/h | 3.5 | 6.8 | 8.5 | 14 | 16 | 20 | 33 |
Natural gas | Nm³/h | 3.5 | 7 | 8.75 | 15 | 19 | 22 | 36.5 | |
LPG | Nm³/h | 1.5 | 3 | 3.8 | 6 | 7.5 | 9 | 14.5 | |
City gas | Nm³/h | 8.5 | 18 | 22.5 | 34 | 43 | 52 | 88 | |
Water capacity | L | 29 | 49.3 | 49.6 | 49.5 | 49.5 | 49.5 | 49.6 | |
a Main steam valve diameter | DN | 15 | 25 | 25 | 32 | 32 | 32 | 50 | |
b Safety valve diameter | DN | 20 | 20 | 20 | 25 | 25 | 25 | 40 | |
c Inlet diamater | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 | |
d Blowoff Valve diameter | DN | 20 | 20 | 20 | 25 | 25 | 25 | 25 | |
Chimney diameter | DN | 80 | 125 | 125 | 150 | 150 | 150 | 250 | |
Overall size | L | mm | 820 | 880 | 900 | 1400 | 1500 | 1500 | 1800 |
W | mm | 890 | 1100 | 1150 | 1000 | 1100 | 1200 | 1300 | |
H | mm | 1600 | 1800 | 1900 | 1000 | 2200 | 2200 | 2350 | |
φDiameter | mm | 600 | 650 | 650 | |||||
Weight | kg | 180 | 220 | 240 | 850 | 1150 | 1200 | 1680 |

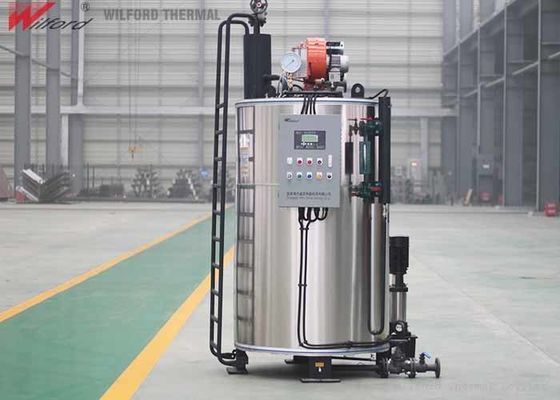

Industrial Steam Boiler Picture
Industrial Steam Boiler
