Product Details:
|
| Rated Evaporation: | 500KG | Rated Working Pressure: | 0.7Mpa |
|---|---|---|---|
| Staturated Steam Temperature: | 170℃ | Usage: | Steam Outputing |
| Style: | Vertical | Fuel: | Oil-fired,Gas-fired,natural Gas,lpg |
| Pressure: | Low Pressure | Type: | Natural Circulation |
| Condition: | New | Output: | Steam |
| Weight: | Consult Customer-service Staff | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Dimension(l*w*h): | Depends | Product Name: | Steam Boiler |
| High Light: | natural gas steam boiler,lpg fired steam boiler |
||

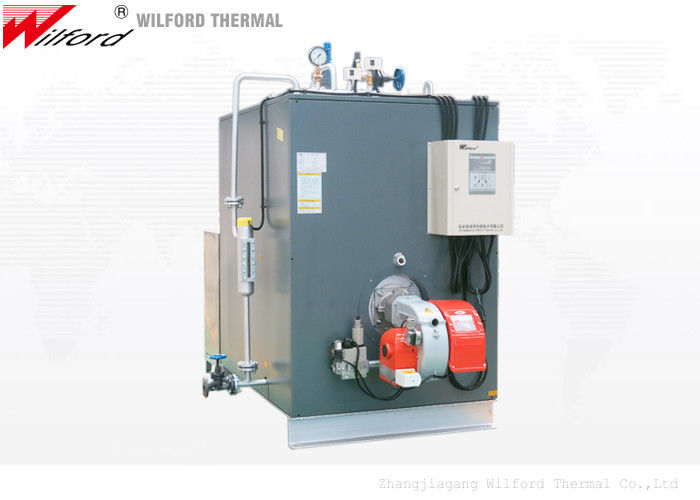

500KG/h High Efficiency Natural Gas Fired Steam Bolier Price
Product introduction
★ Natural Gas Fired Steam Bolier adopts high quality pressure gauge reliable and accurate.

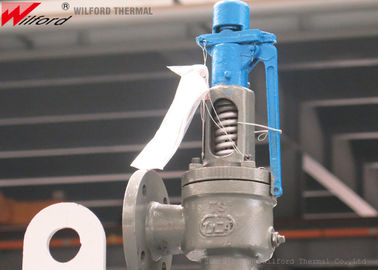

★ Adopt high-precision pressure control switch and full-open safety valve to ensure safe operation of the boiler.
★ High lift water pump,high pressure stable water supply
★ Wilford controller,simple operation,automatic operation
★ LCD display controller, can display the running status, fault alarm, type and other parameters.
★ 500KG 1T gas steam generator can be exempted from inspection; Optional all-premixed surface burner; Low nitrogen 30 mg; Optional Siemens PLC controller.
★ Equipped with multi-function water level gauge, the user can understand the current water level directly.
Parameter
| Type | LSS0.5 | LSS1 | LSS1.5 | LSS2 | ||
| Project | Unit | |||||
| Rated evaporation | t/h | 0.5 | 1 | 1.5 | 2 | |
| Rated working pressure | MPa | 0.7/1.0 | 1.0/1.25 | 1.0/1.25 | 1.0/1.25 | |
| Staturated steam temperature | ℃ | 170/193 | 184/193 | 184/193 | 184/193 | |
| Fuel consumption | Light diesel oil | kg/h | 35 | 70 | 105 | 140 |
| Natural gas | Nm³/h | 40 | 80 | 120 | 160 | |
| LPG | Nm³/h | 15 | 30 | 45 | 60 | |
| City gas | Nm³/h | 85 | 170 | 265 | 340 | |
| a Main steam valve diameter | DN | 40 | 50 | 65 | 80 | |
| b Safety valve diameter | DN | 40 | 50 | 50 | 40×2 | |
| c Inlet diamater | DN | 25 | 25 | 32 | 40 | |
| d Blowoff Valve diameter | DN | 25 | 40 | 40 | 40 | |
| e Chimney diameter | DN | 250 | 350 | 400 | 500 | |
| Overall size | L | mm | 1830 | 1980 | 2045 | 2550 |
| W | mm | 1780 | 1980 | 2220 | 2780 | |
| H | mm | 2650 | 3080 | 3380 | 3620 | |
| H1 | mm | 2100 | 2300 | 2650 | 2880 | |
| φDiameter | mm | 1180 | 1380 | 1680 | 1980 | |
| Weight | T | 1.8/2.2 | 2.3/2.8 | 3.3/4 | 4.3/5.2 | |
Advantage

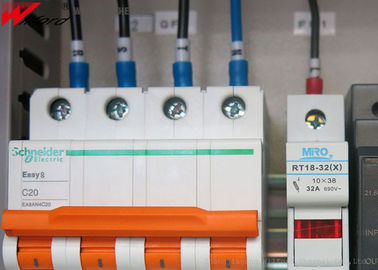

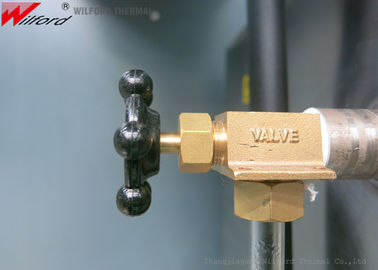

Product detail picture
Application Scope
Product picture
FAQ
Q : Are you a factory or a trading company?
A : We are a 20 years old industrial boiler factory, specializing in gas oil diesel electric fired boilers.
Q : What is the Warranty for the boilers?
A : Our steam boiler warranty is one year, During the warranty period, any parts damaged, you can get a new parts for free.
Q : How long should we wait for delivery?
A : Usually it will take about 35-45 days for pressured boilers, If you need to change the voltage or pressure, it need more time.
Q : What about your payment term?
A : Usually it would be 30% deposit payment, 70% balance before delivery. We accept T/T, L/C and other payment way.
