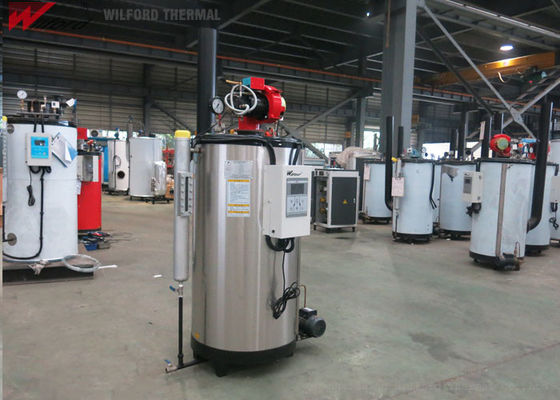

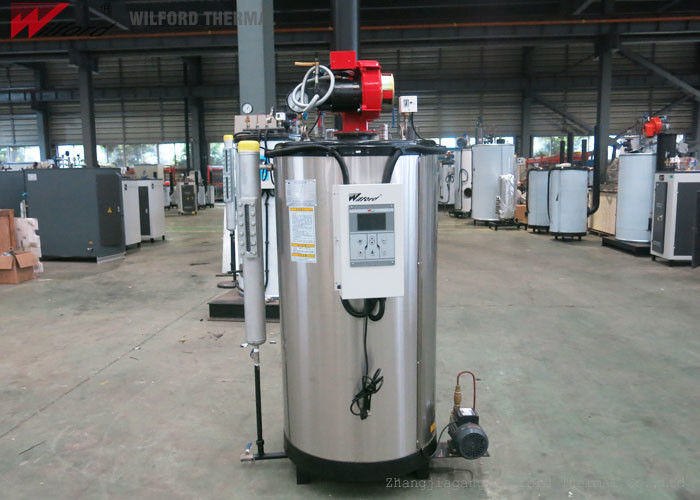

0.7MPA Industrial Vertical 125kg/H High Efficiency Diesel Oil Boiler

0.7MPA Industrial Vertical 125kg/H High Efficiency Diesel Oil Boiler
0.7MPA Industrial Vertical 125kg/H High Efficiency Diesel Oil Boiler 0.7MPA Industrial Vertical 125kg/H High Efficiency Diesel Oil Boiler 0.7MPA Industrial Vertical 125kg/H High Efficiency Diesel Oil Boiler 0.7MPA Industrial Vertical 125kg/H High Efficiency Diesel Oil Boiler

Large Image :  0.7MPA Industrial Vertical 125kg/H High Efficiency Diesel Oil Boiler

Product Details:
Place of Origin: China
Brand Name: WILFORD
Certification: CE,ASME
Model Number: LSS
Payment & Shipping Terms:
Minimum Order Quantity: 1 stand
Price: Negotiable
Packaging Details: Wooden box package
Delivery Time: 15-20 working days
Payment Terms: L/C, T/T
Supply Ability: 25 stand/stands per Month

0.7MPA Industrial Vertical 125kg/H High Efficiency Diesel Oil Boiler

Description
Rated Evaporation: 50-125kg/h Rated Working Pressure: 0.7Mpa
Staturated Steam Temperature: 170℃ Usage: Steam Outputing
Style: Vertical Fuel: Oil-fired,Gas-fired,natural Gas,lpg
Pressure: Low Pressure Type: Natural Circulation
Product Name: Diesel Oil Fired Steam Boiler Output: Steam
High Light:

125kg/h diesel oil boiler

,

0.7MPA Industrial diesel oil boiler

,

125kg/h high efficiency oil boiler



Industrial 50kg/h 100kg/h 125kg/h Diesel Oil Fuel Steam Boilers ,Steam Generator



Diesel Oil Fuel Steam Boilers introduction



  • Industrial Oil/ Gas Fired Steam Boilers  Boiler water volume is small, with quick start of cold furnace,which can realize temperature and pressure rise during a short period of time.



  • Automatic microcomputer program control, pressure digital display and pid linear adjustment, flame detection, water shortage protection, smoke temperature detection and other multiple data detection protection, high safety.



  • Fully skid-mounted ,centralized steam supply, could realize single independent or multiple units centralized control, exempted of installtion and design.



  • Multiple chain protection,Full combustion, low energy consumption,Safety and energy saving.



  • The furnace structure has good heat absorption effect, the combustion efficiency is 95%.




Diesel Oil Fuel Steam Boilers  Parameter





Model LSS0.05-0.7-Y.Q LSS0.1-0.7-Y.Q LSS0.125-0.7-Y.Q LSS0.2-0.7-Y.Q LSS0.25-0.7-Y.Q LSS0.3-0.7-Y.Q LSS0.5-0.7-Y.Q
Project Unit
Rated evaporation Kg/h 50 100 125 200 250 300 500
Rated working pressure MPa 0.7 0.7 0.7 0.7 0.7 0.7 0.7
Staturated steam temperature 170 170 170 170 170 170 170
Fuel consumption Light diesel oil kg/h 3.5 6.8 8.5 14 16 20 33
Natural gas Nm³/h 3.5 7 8.75 15 19 22 36.5
LPG Nm³/h 1.5 3 3.8 6 7.5 9 14.5
City gas Nm³/h 8.5 18 22.5 34 43 52 88
Water capacity L 29 49.3 49.6 49.5 49.5 49.5 49.6
a Main steam valve diameter DN 15 25 25 32 32 32 50
b Safety valve diameter DN 20 20 20 25 25 25 40
c Inlet diamater DN 15 15 15 15 15 15 15
d Blowoff Valve diameter DN 20 20 20 25 25 25 25
Chimney diameter DN 80 125 125 150 150 150 250
Overall size L mm 820 880 900 1400 1500 1500 1800
W mm 890 1100 1150 1000 1100 1200 1300
H mm 1600 1800 1900 1000 2200 2200 2350
φDiameter mm 600 650 650
Weight kg 180 220 240 850 1150 1200 1680





Diesel Oil Fuel Steam Boilers Detail Drawing



0.7MPA Industrial Vertical 125kg/H High Efficiency Diesel Oil Boiler 0





Diesel Oil Fuel Steam Boilers After-sales service



  • Provide on-site reconnaissance and guide the installation.



  • commissioning and personnel training



  • A big team in responsible for the after-sale service and is always at customers’ service.



  • You can get accessories with factory price.



  • We will supply after service 24 hours,customer can contact us any time.



  • Our warranty is 12 months from the date when the Machine start using in cutomer's factory.
