Product Details:
|
Rated Evaporation: | 1-10T/h | The Rated Steam Pressure: | 0.7-2.5Mpa |
---|---|---|---|
The Rated Steam Temperature: | 170/184/194/203/226℃ | Style: | Horizontal |
Fuel: | Biomass /Coal | Keywords: | Wood Fired Steam Boiler For Sale |
Feed Temperature: | 20/60/105℃ | Condition: | New |
Output: | Steam | Usage: | Industrial |
After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Warranty: | 1 Year |
High Light: | coal steam boiler,coal powered boiler |
Best Sales CE Certificated Biomass 1000kg Steam Boiler For Industry
Product introduction
Biomass environmental protection boiler has the characteristics of high thermal efficiency, strong adaptability and wide range of applications. It can be widely used in enterprises producing water, steam and heat, as well as in the heating of residential areas and various production and power generation enterprises.
Parameter
Type | DZL1 | DZL2 | DZL3 | DZL4 | DZL6 | DZL8 | DZL10 | ||
Project | Unit | ||||||||
The enaporation | T/h | 1 | 2 | 3 | 4 | 6 | 8 | 10 | |
The rated steam pressure | Mpa | 0.7,1.0,1.25,1.6,2.5 | |||||||
The rated steam temperature | ℃ | 170,184,194,203,226 | |||||||
Feed temperature | ℃ | 20,60,105 | |||||||
Avaible fuel | (AⅡ) | ||||||||
Design the thermal efficiency | % | 80.2 | 80.1 | 80.3 | 80.6 | 80.3 | 80.5 | 80.6 | |
The fuel consumption | Kg/h | 181 | 378.4 | 493 | 723 | 1089 | 1509 | 1750 | |
The transport dimension L*W*H(mm) |
mm | 5200*2100*3000 | 5525*2440*3400 | 6300*2650*3400 | 6081*2575*3400 | 8000*2900*3550 | 7526*3340*4300 | 8980*3200*3550 | |
Boiler installation structure | The fast The assembly |
Product Advantage

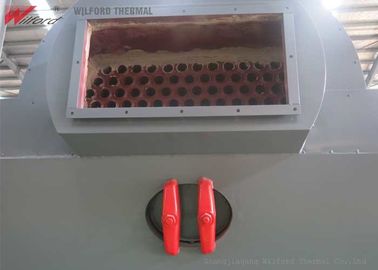

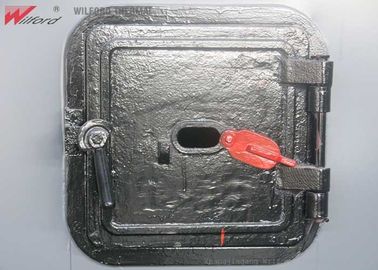

Product detail drawing

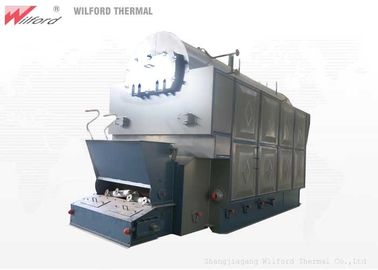

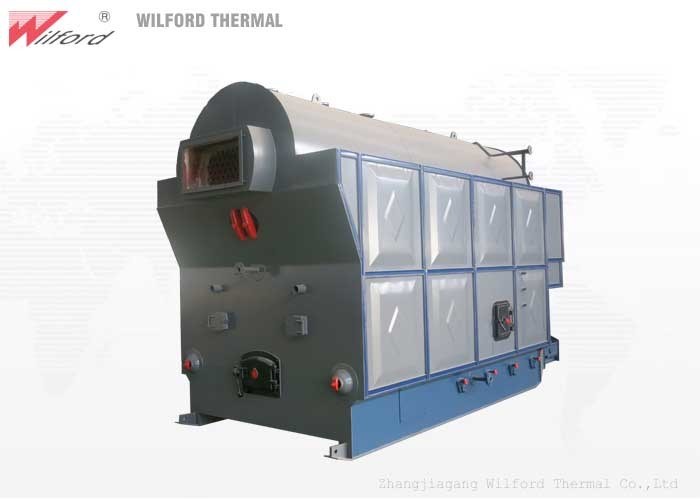

Product picture
Application
Service
FAQ
Q : Are you a factory or a trading company?
A : We are a 20 years old industrial boiler factory, specializing in gas oil diesel electric fired boilers.
Q : What is the Warranty for the boilers?
A : Our steam boiler warranty is one year, During the warranty period, any parts damaged, you can get a new parts for free.
Q : How long should we wait for delivery?
A : Usually it will take about 35-45 days for pressured boilers, If you need to change the voltage or pressure, it need more time.
Q : What about your payment term?
A : Usually it would be 30% deposit payment, 70% balance before delivery. We accept T/T, L/C and other payment way.
