100Kg Gas Oil Vertical Industrial Electric Steam Boiler For Pharmaceutical Industry

Description
Rated Steam Capacity: 0.15-1.2T/h Rated Working Pressure: 0.7Mpa
Staturated Steam Temperature: 170℃ Input Power: 108-864KW
Rated Voltage: 380V Certification: CE,ISO,ASME
Output: Steam Usage: Industrial,swimming Pool,home&industrial Heating,Steam Outputing
Structure: Electric Heating Tube After-sales Service Provided: Engineers Available To Service Machinery Overseas
Warranty: 1 Year Thermal Efficiency: 98%
High Light:

100Kg Industrial Electric Steam Boiler

,

100Kg electric steam generator boiler

,

Vertical electric steam generator boiler





100Kg Gas Oil fired Vertical Steam Boiler For pharmaceutical industry





Industrial Electric Steam Boiler Product introduction



  • All electrical components have CE and CCC marks to ensure product safety and service life.



  • Full automatic operation mode, simple operation, boiler start-up amd stop quickly. operating load adjustment range, applicable to various working conditions.



  • Each group of electric heating element is connected with concentrated bundle flange, independent setting, high mechanical strength, safe and reliable. Easy to replace and long service life.

  • Adopt safety furnace liner structure, built-in high-efficiency steam-water separation device.



  • Adopt European heating tube, Incoloy800 stainless steel material (performance far exceeds 316L material) has strong anti-scale and corrosion resistance.



Industrial Electric Steam Boiler  Parameter



                                                         WFD  Electrical Steam Boiler
Type WDR0.15-0.7 WDR0.2-0.7 WFD0.4-0.7 WFD0.6-0.7 WFD0.8-0.7 WFD1.0-0.7 WFD1.2-0.7
Project Unit
Rated evaporation t/h 0.15 0.2 0.4 0.6 0.8 1 1.2
Rated working pressure MPa 0.7 0.7 0.7 0.7 0.7 0.7 0.7
Staturated steam temperature 170 170 170 170 170 170 170
Input Power KW 108 144 288 432 576 720.00 864.00
Input current A 144 216 435 650 865.00 1080.00 1300
Rated Voltage V 380V
Power×Group KW×P 36KW*3 36KW*4 36KW*8 36KW*12 36KW*16 36KW*20 36KW*24
a Main steam valve diameter DN 25 25 40 40 50 50 65
b Safety valve diameter DN 25 25 25*2 25*3 25*4 25*5 25*6
c Inlet diamater DN 15 15 25 25 25 40 40
d Blowoff Valve diameter DN 25 25 25 25 25 25 25
Overall size L mm 1500 1500 1500 1500 1500 1500 1500
W mm 700 700 1400 2100 2800 3500 4200
H mm 1900 1900 1900 1900 1900 1900 1900
Weight T 200 200 400 650 820 1100 1300

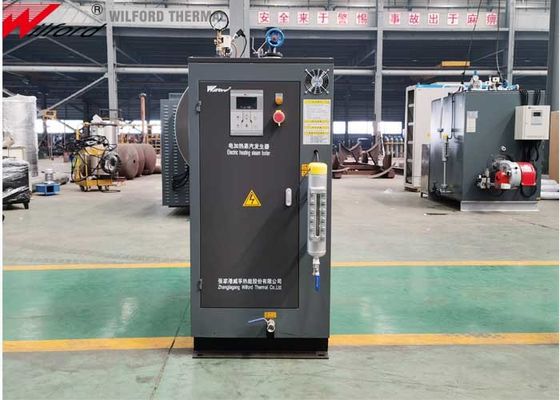

Industrial Electric Steam Boiler  Product picture



100Kg Gas Oil Vertical Industrial Electric Steam Boiler For Pharmaceutical Industry 0



Industrial Electric Steam Boiler  Application



  • Washing ironing industry: dry washer, dryer and washing machine, dryer, ironing machine, electric iron, and other ancillary equipment.



  • Food machinery industry: tofu machine, steam box, sterilization pot, packing machine, coating equipment, sealing machine, such as supporting the use of equipment



  • Biological Chemical Industry: fermentation tank, reaction kettle, sandwich pot, mixer, emulsifying machine supporting the use of equipment



  • Other industries: oil field, car) steam cleaning industry, (hotel, school, dormitory, batch plant) , (Bridges, railways) concrete curing, leisure (salon), sauna bath, heat exchange equipment.
