Product Details:
|
| Rated Evaporation: | 200kg/h | Rated Working Pressure: | 0.7/1.0Mpa |
|---|---|---|---|
| Staturated Steam Temperature: | 170/193 | Input Power: | 144KW |
| Input Current: | 216A | Power*Group: | 18*8/24*6 |
| High Light: | electric steam boiler,electric heating steam boiler |
||
200KG Vertical Industrisl Electric Steam Boiler For Food sterilization
Product introduction
Parameter
| Type | LDR0.15 | LDR0.2 | LDR0.3 | LDR0.5 | ||
| Project | Unit | |||||
| Rated evaporation | t/h | 0.15 | 0.2 | 0.3 | 0.5 | |
| Rated working pressure | MPa | 0.7/1.0 | 0.7/1.0 | 0.7/1.0 | 0.8/1.0 | |
| Staturated steam temperature | ℃ | 170/193 | 170/193 | 170/193 | 184/193 | |
| Input Power | KW | 108 | 144 | 216 | 360 | |
| Input current | A | 162 | 216 | 324 | 540 | |
| Rated pressure | V | 3N AC 50Hz 380V | ||||
| Power×Group | KW×P | 18×6 | 18×8/24×6 | 27×8 | 36×10 | |
| a Main steam valve diameter | DN | 25 | 32 | 32 | 50 | |
| b Safety valve diameter | DN | 25 | 25 | 25 | 40 | |
| c Inlet diamater | DN | 20 | 20 | 20 | 25 | |
| d Blowoff Valve diameter | DN | 25 | 25 | 25 | 40 | |
| Overall size | L | mm | 1100 | 1280/1150 | 1300 | 1580 |
| W | mm | 950 | 1150/950 | 1200 | 1350 | |
| H | mm | 2050 | 2100/2050 | 2200 | 2600 | |
| A | mm | - | - | 1200 | 1200 | |
| B | mm | - | - | 500 | 500 | |
| C | mm | - | - | 1800 | 1800 | |
| Weight | kg | 330/400 | 450/530 | 680/740 | 980/1080 | |
Advantage
1 . Vertical design

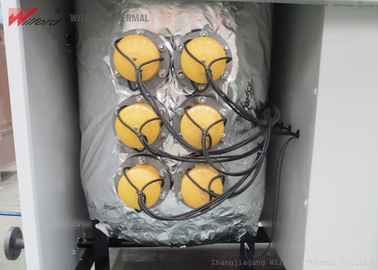

2 . Low surface heat load electric heating element
3 . The heating element is completely insulated
4 . Small heat loss
5 . Nearly 99% thermal efficiency
6 . Efficient, energy saving

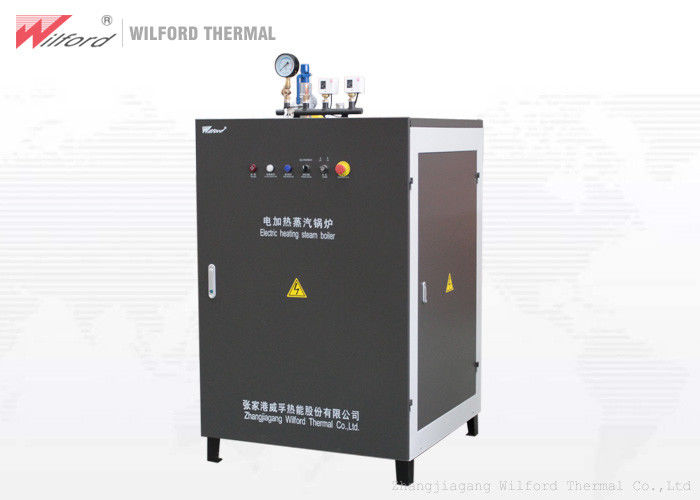

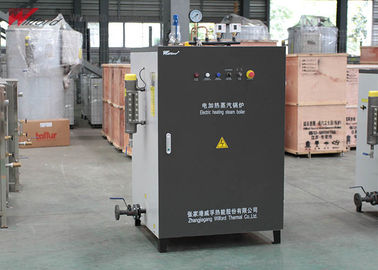

Product picture
Project case diagram
