2.5Mpa Pellet Fired Steam Boiler

2.5Mpa Pellet Fired Steam Boiler
2.5Mpa Pellet Fired Steam Boiler 2.5Mpa Pellet Fired Steam Boiler 2.5Mpa Pellet Fired Steam Boiler 2.5Mpa Pellet Fired Steam Boiler

Large Image :  2.5Mpa Pellet Fired Steam Boiler

Product Details:
Place of Origin: China
Brand Name: WILFORD
Certification: CE
Model Number: DZL
Payment & Shipping Terms:
Minimum Order Quantity: 1 stand
Price: Negotiable
Packaging Details: Standard export wooden Packing
Delivery Time: 15-20 working days
Payment Terms: L/C, T/T
Supply Ability: 15 Set/Sets per Month

2.5Mpa Pellet Fired Steam Boiler

Rated Evaporation: 4T/h The Rated Steam Pressure: 0.7-2.5Mpa
The Rated Steam Temperature: 170/184/194/203/226℃ Style: Horizontal
Fuel: Biomass /Coal Keywords: Wood Fired Steam Boiler For Sale
Feed Temperature: 20/60/105℃ Condition: New
Output: Steam Usage: Industrial
After-sales Service Provided: Engineers Available To Service Machinery Overseas Warranty: 1 Year
High Light:

biomass steam boiler


biomass pellet steam boiler



Best Price Sale Biomass Wood Chips Pellet Fired Steam Boiler for Industrial Use



Product introduction


  • This type of biomass steam boiler adopts chain grate, suitable for molding pellet fuel, can add a small amount of wood, wood block, also can burn with coal.


  • This  biomass steam boiler adopt the newest achievements in scientific research, such as:Arched Tube plate, thread smoke tube etc, solve the tube plate crack of shell type boiler, water wall tube burst, low efficiency, insufficient of power, poor pf coal type adaptability etc.


  • At the back of the combustion chamber, there are the reburning chamber, the convection tube bundle and the biomass fuel economizer. The flue gas flows through the furnace chamber, combustion chamber, convection tube bundle and the biomass fuel economizer to the back end ductwork. And then the flue gas is discharged into the atmosphere through the dust catcher, induced draught fan and chimney.



Project Unit
The enaporation T/h 1 2 3 4 6 8 10
The rated steam pressure Mpa 0.7,1.0,1.25,1.6,2.5
The rated steam temperature 170,184,194,203,226
Feed temperature 20,60,105
Avaible fuel (AⅡ)
Design the thermal efficiency 80.2 80.1 80.3 80.6 80.3 80.5 80.6
The fuel consumption Kg/h 181 378.4 493 723 1089 1509 1750
The transport dimension
mm 5200*2100*3000 5525*2440*3400 6300*2650*3400 6081*2575*3400 8000*2900*3550 7526*3340*4300 8980*3200*3550
Boiler installation structure The fast The assembly



Product Advantage



  • The new DZL water-fire tube boiler is a new eco-friendly and energy-saving product.


  • It is a water- fire tube shell boiler, vertical furnace, two-wing flue, and the design of three-pass spirally corrugated tube.


  • Using the unique spirally corrugated tube technology to transfer the heat efficiently. With compact structure, precise manufacture, high technical maturity and stable operation.



Product detail drawing


2.5Mpa Pellet Fired Steam Boiler 0

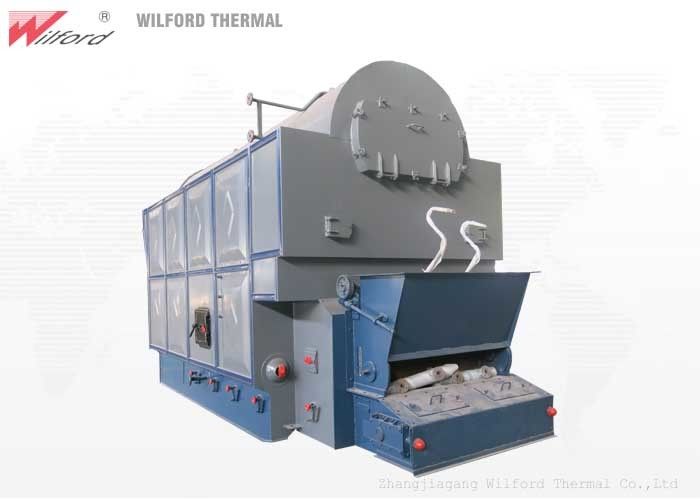

Product picture


2.5Mpa Pellet Fired Steam Boiler 1




  • Pharmaceutical factory, packaging factory, building material factory, paint factory, beauty salon, bath center, sauna, steam room, baby swimming pool, etc.


  • It is widely used in hospitals, schools, textile mills, garment factories, clothing supermarkets, garment factories, dry cleaners, restaurants.


  • Hotels, restaurants, hotels, canteens, restaurants, food factories, beverage factories, soy products factories, canneries, wineries.





  • Provide on-site reconnaissance and guide the installation.


  • commissioning and personnel training


  • A big team in responsible for the after-sale service and is always at customers’ service.


  • You can get accessories with factory price.


  • We will supply after service 24 hours,customer can contact us any time.


  • Our warranty is 12 months from the date when the Machine start using in cutomer's factory.




Q : Are you a factory or a trading company?
A : We are a 20 years old industrial boiler factory, specializing in gas oil diesel electric fired boilers.


Q : What is the Warranty for the boilers?

A : Our steam boiler warranty is one year, During the warranty period, any parts damaged, you can get a new parts for free.


Q : How long should we wait for delivery?

A : Usually it will take about 35-45 days for pressured boilers, If you need to change the voltage or pressure, it need more time.

Q : What about your payment term?
A : Usually it would be 30% deposit payment, 70% balance before delivery. We accept T/T, L/C and other payment way.
