Product Details:
|
| Rated Evaporation: | 250-300kgT/h | Rated Working Pressure: | 0.7Mpa |
|---|---|---|---|
| Staturated Steam Temperature: | 170℃ | Fuel: | Light Diesel Oil |
| Dimension(L*W*H): | Depends | Usage: | Chemical,medical,food,washing Etc. |
| Style: | Vertical | Condition: | New |
| Output: | Steam | Type: | Natural Circulation |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Structure: | Water Tube |
| Dimension(l*w*h): | Depends On The Boiler Capacity | Certification: | ASME,ISO9001,CE |
| Warranty: | 1 Year | Product Name: | Oil Gas Fired Steam Boiler |
| Thermal Efficiency: | 92%--98% | Design Fuel: | Light Oil,etc,Oil/Gas,Gas |
| High Light: | 300kg/h Gas Fired Steam Boiler,300kg/h natural gas fired boiler,Skid Mounted natural gas boiler |
||

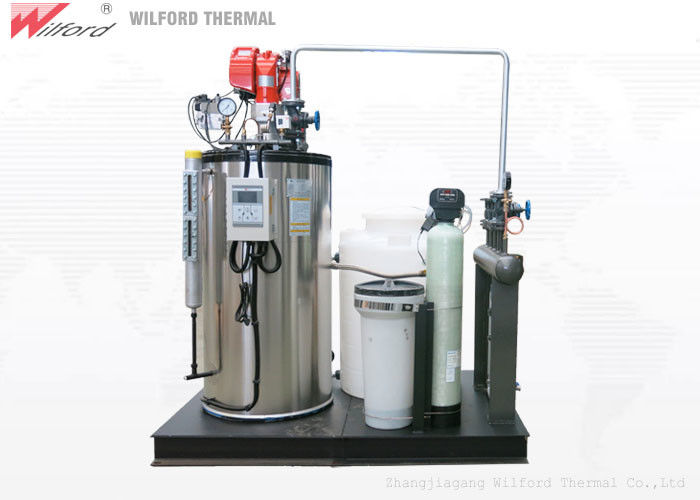

250-300kg/h Fully Skid Mounted Natural Gas/Diesel Oil Fuel Steam Boiler For Industry
Fully Skid Mounted Steam Boiler Product introduction
Fully Skid Mounted Steam Boiler Parameter
| Model | LSS0.05-0.7-Y.Q | LSS0.1-0.7-Y.Q | LSS0.125-0.7-Y.Q | LSS0.2-0.7-Y.Q | LSS0.25-0.7-Y.Q | LSS0.3-0.7-Y.Q | LSS0.5-0.7-Y.Q | ||
| Project | Unit | ||||||||
| Rated evaporation | Kg/h | 50 | 100 | 125 | 200 | 250 | 300 | 500 | |
| Rated working pressure | MPa | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | |
| Staturated steam temperature | ℃ | 170 | 170 | 170 | 170 | 170 | 170 | 170 | |
| Fuel consumption | Light diesel oil | kg/h | 3.5 | 6.8 | 8.5 | 14 | 16 | 20 | 33 |
| Natural gas | Nm³/h | 3.5 | 7 | 8.75 | 15 | 19 | 22 | 36.5 | |
| LPG | Nm³/h | 1.5 | 3 | 3.8 | 6 | 7.5 | 9 | 14.5 | |
| City gas | Nm³/h | 8.5 | 18 | 22.5 | 34 | 43 | 52 | 88 | |
| Water capacity | L | 29 | 49.3 | 49.6 | 49.5 | 49.5 | 49.5 | 49.6 | |
| a Main steam valve diameter | DN | 15 | 25 | 25 | 32 | 32 | 32 | 50 | |
| b Safety valve diameter | DN | 20 | 20 | 20 | 25 | 25 | 25 | 40 | |
| c Inlet diamater | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 | |
| d Blowoff Valve diameter | DN | 20 | 20 | 20 | 25 | 25 | 25 | 25 | |
| Chimney diameter | DN | 80 | 125 | 125 | 150 | 150 | 150 | 250 | |
| Overall size | L | mm | 820 | 880 | 900 | 1400 | 1500 | 1500 | 1800 |
| W | mm | 890 | 1100 | 1150 | 1000 | 1100 | 1200 | 1300 | |
| H | mm | 1600 | 1800 | 1900 | 1000 | 2200 | 2200 | 2350 | |
| φDiameter | mm | 600 | 650 | 650 | |||||
| Weight | kg | 180 | 220 | 240 | 850 | 1150 | 1200 | 1680 | |
Fully Skid Mounted Steam Boiler detail drawing
Fully Skid Mounted Steam Boiler FAQ
Q1: How can you get the best price quickly?
(1) We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
(2) Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
Q2: Why should you believe our boiler quality?
(1).Strength calculation report with applied materials information;
(2).100%NDT(non-destructive inspection) report of steel plate, tube and welding rod;
(3).100% X-ray inspection(welding seam): ensure the quality of entire boiler;
(4).Hydrostatic test: ensure the standard working pressure and safety;
(5).Third-party inspection report.
Q3: What about the installation and Commissioning?
After you receive the boiler, we will guide you to make some preparation for installation;If necessary, our expert will fly to your local place The experts will responsible for guiding installation and commissioning.
