Product Details:
|
| Rated Evaporation: | 50-100kg/h | Input Power: | 36-72KW |
|---|---|---|---|
| Input Current: | 54-108A | Working Pressure: | Low Pressure |
| Usage: | Sterilization | Weight: | 130-180kg |
| High Light: | small electric steam generator,mini electric steam generator |
||
36 - 72 KW Small Industrial Electric Steam Generator For Sterilization
Product introduction
Parameter
| Model | LDR0.05-0.7 | LDR0.06-0.7 | LDR0.08-0.7 | LDR0.1-0.7 | ||
| Project | UNIT | |||||
| Rated evaporation | Kg/h | 50 | 60 | 80 | 100 | |
| Rated working pressure | MPa | 0.7 | 0.7 | 0.7 | 0.7 | |
| Saturated steam temperature | ℃ | 170 | 170 | 170 | 170 | |
| Input power | KW | 36 | 40 | 54 | 72 | |
| Input current | A | 54 | 60 | 81 | 108 | |
| Rated voltage | V | 3N AC 50Hz 380V | ||||
| a Main steam valve diameter | DN | 15 | 15 | 15 | 25 | |
| b Safety valve diameter | DN | 15 | 15 | 15 | 25 | |
| c Inlet diamater | DN | 15 | 15 | 15 | 15 | |
| d Blowoff valve diameter | DN | 15 | 15 | 15 | 20 | |
Overall size |
L | mm | 750 | 750 | 750 | 750 |
| W | mm | 600 | 680 | 680 | 660 | |
| H | mm | 1200 | 1200 | 1200 | 1450 | |
| Weight | kg | 130 | 150 | 160 | 180 | |
Feature
1 . Can be exempted from local supervision and inspection
2 . Compact structure and small size
3 . 316L stainless steel seamless tube
4 . Flexible and space saving
5 . Built-in multiple operation protection

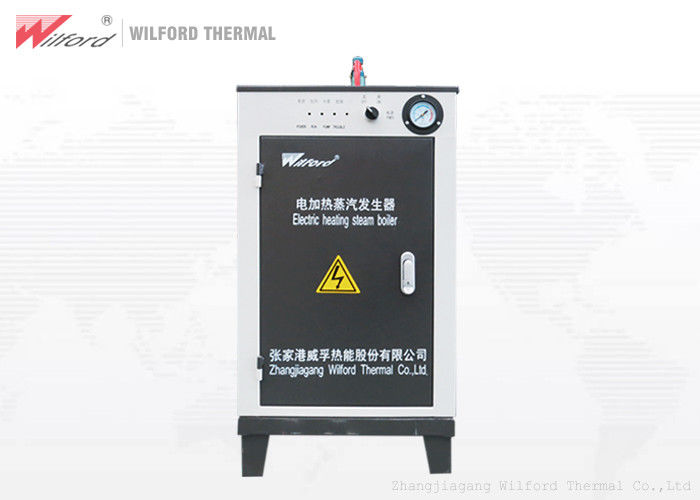

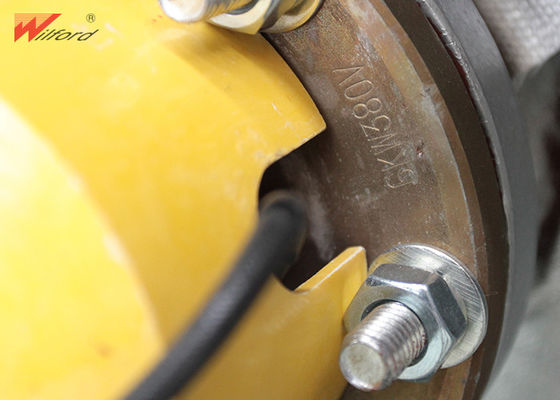

Product picture
Project case diagram
