Rated Evaporation: | 0.5-8T/h | Rated Working Pressure: | 0.7/1.25Mpa |
---|---|---|---|
Fuel Consumption: | LPG | Weight: | 3.3-20T |
Usage: | Steam Cleaning Industry | Output: | Steam |
High Light: | 8T/H Gas Fired Steam Boiler,8T/H horizontal steam boiler,three pass lpg steam boiler |
Natural Circulation Gas Fired Steam Boiler For Steam Cleaning Industry
Gas Fired Steam Boiler introduction
Gas Fired Steam Boiler Parameter
Model | WNS0.5 | WNS1 | WNS1.5 | WNS2 | WNS3 | WNS4 | WNS6 | WNS8 | ||
Project | Unit | |||||||||
Rated evaporation | t/h | 0.5 | 1 | 1.5 | 2 | 3 | 4 | 6 | 8 | |
Rated working pressure | MPa | 0.7 | 1 | 1 | 1 | 1 | 1.25 | 1.25 | 1.25 | |
Staturated steam temperature | ℃ | 170 | 184 | 184 | 184 | 184 | 193 | 193 | 193 | |
Fuel consumption | Light diesel oil | kg/h | 35 | 70 | 105 | 140 | 210 | 260 | 390 | 520 |
Natural gas | Nm³/h | 40 | 80 | 120 | 160 | 240 | 280 | 420 | 560 | |
LPG | Nm³/h | 15 | 30 | 45 | 60 | 90 | 120 | 180 | 240 | |
City gas | Nm³/h | 85 | 170 | 250 | 340 | 510 | 680 | 1020 | 1360 | |
a Main steam valve diameter | DN | 40 | 65 | 65 | 80 | 80 | 100 | 125 | 150 | |
b Safety valve diameter | DN | 40 | 50 | 50 | 40×2 | 40×2 | 50×2 | 65×2 | 80×2 | |
c Inlet diamater | DN | 25 | 25 | 40 | 40 | 40 | 50 | 50 | 65 | |
d Blowoff Valve diameter | DN | 40 | 40 | 40 | 50 | 50 | 50 | 50 | 50 | |
e Chimney diameter | DN | 250 | 300 | 350 | 400 | 450 | 500 | 650 | 800 | |
Overall size | L | mm | 3800 | 4500 | 4700 | 4800 | 5500 | 6310 | 7200 | 7780 |
L1 | mm | 3100 | 3200 | 3600 | 3800 | 4500 | 5230 | 5960 | 6320 | |
W | mm | 1900 | 2300 | 2800 | 2900 | 2900 | 2950 | 3190 | 3440 | |
W1 | mm | 1000 | 1880 | 1900 | 2150 | 2350 | 2350 | 2650 | 2980 | |
H | mm | 2100 | 2680 | 2950 | 3250 | 3880 | 3120 | 3610 | 3700 | |
H1 | mm | 1800 | 1980 | 2070 | 2250 | 2450 | 2530 | 2850 | 2920 | |
Weight | T | 3.3 | 4.6 | 5.5 | 6.3 | 10.6 | 13.8 | 18.5 | 20 |
Gas Fired Steam Boiler Advantage
1 . Wave furnace design
2 . Three-return structure
3 . Heat evenly
4 . Endothermic balance
5 . Energy saving, low consumption, safety

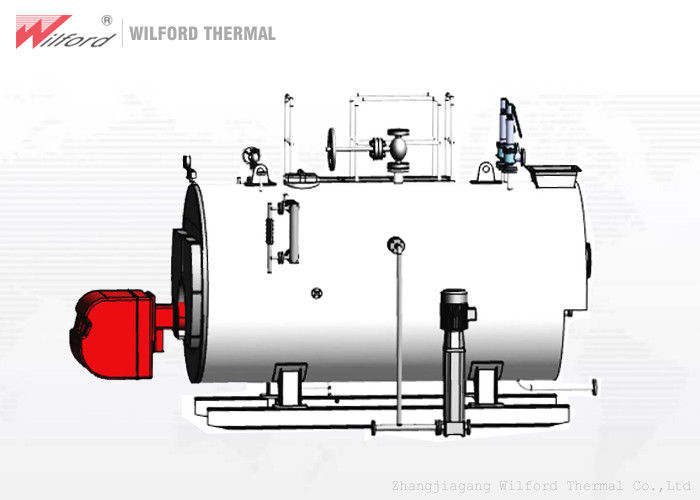

Gas Fired Steam Boiler picture

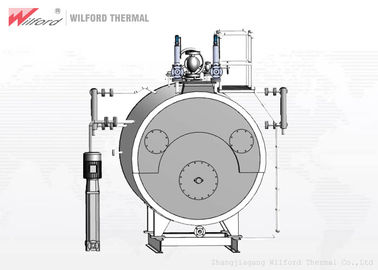

Project case diagram
