Complete Combustion High Efficiency Hot Water Boiler For Bath Centers

Complete Combustion High Efficiency Hot Water Boiler For Bath Centers
Complete Combustion High Efficiency Hot Water Boiler For Bath Centers

Large Image :  Complete Combustion High Efficiency Hot Water Boiler For Bath Centers

Product Details:
Place of Origin: China
Brand Name: WILFORD
Certification: CE
Model Number: CLHS
Payment & Shipping Terms:
Minimum Order Quantity: 1 stand
Price: Negotiable
Packaging Details: Wooden box package
Delivery Time: 15-20 working days
Payment Terms: L/C, T/T
Supply Ability: 10 stand/stands per Month

Complete Combustion High Efficiency Hot Water Boiler For Bath Centers

Description
Rated Thermal Power: 0.06-0.35MW Total Heating Capacity: 50000-300000kcal
Water Inlet Diameter: 80-65DN Blowoff Valve Diameter: 25DN
Weight: 270-830kg Usage: Bath Centers
High Light:

oil water boiler

,

industrial hot water boiler





High - efficiency Oil Fired Hot Water Boiler For Bath Centers





Product introduction



  • This boiler has very high thermal efficiency, three-way full wet back structure, and higher than 90% thermal efficiency.



  • The high radiation surface and the heating surface are very high in utilization. It also has the characteristics of “self-cleaning”, good heat transfer effect and low heat loss.



  • In winter, it not only has the function of low temperature antifreeze, but also can automatically adjust the heating temperature as the outdoor temperature changes.



  • It is designed to meet strict environmental requirements, and emissions of soot and NOx are relatively small.



  • We use imported burners, which have high combustion efficiency and reduce fuel waste.



  • The boiler has multiple interlocking protection functions, which are safe and efficient.




Parameter



Type CLHS0.06-95/70-Y.Q CLHS0.12-95/70-Y.Q CLHS0.17-95/70-Y.Q CLHS0.23-95/70-Y.Q CLHS0.35-95/70-Y.Q CLHS0.47-95/70-Y.Q
Project Unit
Rated thermal power MW 0.06 0.12 0.17 0.23 0.35 0.47
Total heat capacity 104kcal 5 10 15 20 30 40
Rated working pressure MPa Ordinary Pressure
Fuel consumption Light diesel oil kg/h 5.4 10.8 16.2 21.6 32.5 43.2
Natural gas Nm3/h 5.8 11.7 17.5 23.4 35 46.8
LPG Nm3/h 2.5 5 7.5 10 15 20
City gas Nm3/h 14.2 28.3 42.5 56.6 85 113.2
Water inlet diameter DN 50 65 65 65 65 80
Water outlet diameter DN 50 65 65 65 65 80
Blowoff valve diameter DN 25 25 25 25 25 40
Voltage V 220 220 220 220 380 380

Overall size
Length mm 800 980 1150 1250 1500 1550
Width mm 700 850 900 1000 1200 1250
Height mm 1300 1650 1800 1950 2000 2100
Weight kg 270 410 450 520 830 980




Advantage



1 . Normal pressure operation


2 . Thermal efficiency above 90%


3 . Unique pipe design


4 . Uniform heat, good heat transfer effect


5 . Pressure atomization, complete combustion


6 . Multiple interlock protection devices

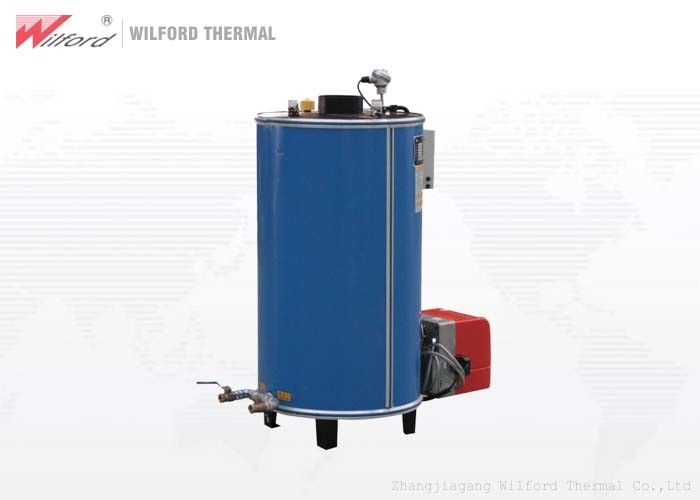

Product picture



Complete Combustion High Efficiency Hot Water Boiler For Bath Centers 0
