Product Details:
|
| Rated Evaporation: | 1-6T/h | Rated Steam Pressure: | 0.7-2.5Mpa |
|---|---|---|---|
| Design Thermal Efficiency: | 80.1-80.6% | Fuel Consumption: | 181-1089kg/h |
| The Transport Dimension: | Depends | Usage: | Greenhouse Industrial |
| High Light: | wood pellet steam boiler,biomass steam boiler |
||

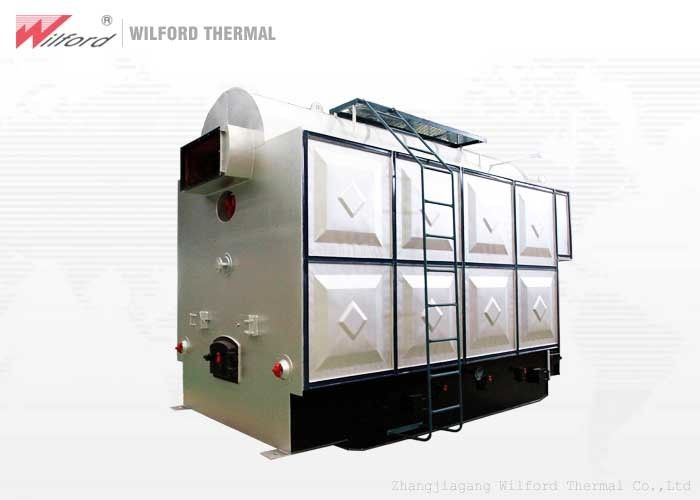

Customized Biomass Fired Steam Boilers For Greenhouse industrial
Product introduction
Biomass boilers have a wide range of applications.
It replaces the fuel and gas boilers, which reduces energy consumption to a certain extent.
The main use of crop straw and residues as fuel, reducing production costs.
The use of threaded pipe, herringbone arch and other technologies to solve the problem of low thermal efficiency.
Has a large combustion chamber and combustion chamber, and burns well.
Reasonable structure and complete configuration, such as slag removal machine, dust collector, induced draft fan, etc.
Parameter
| Type | DZL1 | DZL2 | DZL3 | DZL4 | DZL6 | DZL8 | DZL10 | ||
| Project | Unit | ||||||||
| The enaporation | T/h | 1 | 2 | 3 | 4 | 6 | 8 | 10 | |
| The rated steam pressure | Mpa | 0.7,1.0,1.25,1.6,2.5 | |||||||
| The rated steam temperature | ℃ | 170,184,194,203,226 | |||||||
| Feed temperature | ℃ | 20,60,105 | |||||||
| Avaible fuel | Ⅱ(AⅡ) | ||||||||
| Design the thermal efficiency | ％ | 80.2 | 80.1 | 80.3 | 80.6 | 80.3 | 80.5 | 80.6 | |
| The fuel consumption | Kg/h | 181 | 378.4 | 493 | 723 | 1089 | 1509 | 1750 | |
| The transport dimension L*W*H(mm) |
mm | 5200*2100*3000 | 5525*2440*3400 | 6300*2650*3400 | 6081*2575*3400 | 8000*2900*3550 | 7526*3340*4300 | 8980*3200*3550 | |
Advantage
1 . The layout of the boiler heating surface is reasonable
2 . Reasonable furnace design, full combustion
3 . Strong adaptability to fuel
4 . Small heat loss and high thermal efficiency
5 . Boiler backwater injection technology
6 . Equipped with a slag remover, dust collector, induced draft fan, etc.
7 . Easy to transport and on-site installation
