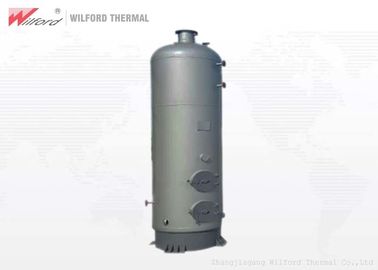

Even Heat Coal Fired Hot Water Boiler Low Fuel Consumption For Paper Processing

Even Heat Coal Fired Hot Water Boiler Low Fuel Consumption For Paper Processing
Even Heat Coal Fired Hot Water Boiler Low Fuel Consumption For Paper Processing

Large Image :  Even Heat Coal Fired Hot Water Boiler Low Fuel Consumption For Paper Processing

Product Details:
Place of Origin: China
Brand Name: WILFORD
Certification: CE
Model Number: DZL
Payment & Shipping Terms:
Minimum Order Quantity: 1 stand
Price: Negotiable
Packaging Details: Export wooden Packing
Delivery Time: 15-20 working days
Payment Terms: L/C, T/T
Supply Ability: 10 stand/stands per Month

Even Heat Coal Fired Hot Water Boiler Low Fuel Consumption For Paper Processing

Description
Rated Thermal Power: 2.8MW The Rated Steam Pressure: 0.7-1.6Mpa
Return Water Temperature: 70℃ Design Thermal Efficiency: 80%
Fuel Consumption: 693kg/h Usage: 6081*2450*3500mm
High Light:

domestic coal fired boilers

,

automatic water boiler





Best - Selling Coal Hot Water Boiler For Paper Processing





Product introduction



  • New type hot water boiler, using coal as fuel, environmental protection and energy saving.



  • The furnace arch with the herringbone arch and the threaded pipe are highly efficient.



  • With the dust collector, it reduces the emission of soot and reduces the harm to the environment.



  • The slag will be discharged from the furnace at any time by the slag remover.



  • Boiler water circulation is natural circulation plus ejector.



  • The operation is safe and stable.




Parameter



Type DZL0.7 DZL1.4 DZL2.8 DZL4.2 DZL5.6 DZL7
Project Unit
Rated thermal power MW 0.7(600000 kcal/h) 1.4(1.2 million kcal/h) 2.8(2.4 million kcal/h) 4.2(3.6 million kcal/h) 5.6(4.8 million kcal/h) 7(6million kcal/h)
The rated steam pressure Mpa 0.7,1.0,1.25,1.6
The water temperature/return water temperature 95/70,115/70,130/70
Avaible fuel (AⅡ)
Design the thermal efficiency 80.2 80.8 80 82.3 80.3 80.8
The fuel consumption Kg/h 129 351.3 693 1041.9 1089 1707.8
Boiler installation structure 5200*2100*3000 5525*2440*3400 6081*2450*3500 8000*2700*3550 8000*2900*3550 8980*3200*3600




Advantage



1 . Arrange the threaded tobacco pipe in the drum


2 . Adopting up and going out natural circulation plus ejector


3 . Full heat transfer, even heat


4 . Large furnace, large area of radiation and heat


5 . Equipped with a special slag remover and dust collector


6 . Efficient and safe
