Food Processing 200KG / H Skid Mounted Boiler Light Diesel Oil Fuel

Food Processing 200KG / H Skid Mounted Boiler Light Diesel Oil Fuel
Food Processing 200KG / H Skid Mounted Boiler Light Diesel Oil Fuel Food Processing 200KG / H Skid Mounted Boiler Light Diesel Oil Fuel

Large Image :  Food Processing 200KG / H Skid Mounted Boiler Light Diesel Oil Fuel

Product Details:
Place of Origin: China
Brand Name: WILFORD
Certification: CE
Model Number: LWS
Payment & Shipping Terms:
Minimum Order Quantity: 1 stand
Price: Negotiable
Packaging Details: Export wooden Packing
Delivery Time: 15-20 working days
Payment Terms: L/C, T/T
Supply Ability: 10 stand/stands per Month

Food Processing 200KG / H Skid Mounted Boiler Light Diesel Oil Fuel

Description
Rated Evaporation: 0.1-0.3T/h Rated Working Pressure: 0.7Mpa
Staturated Steam Temperature: 170℃ Fuel: Light Diesel Oil
Dimension(L*W*H): Depends Usage: Chemical,medical,food,washing Etc.
High Light:

Food commercial steam generator

,

200KG / H high efficiency steam boiler



200KG / H Skid Mounted Boiler Light Diesel Oil Fuel For Food Processing





Product introduction



  • Wilford offers a full range of skid-mounted boiler products for the commercial heating market.



  • High efficiency skid-mounted boilers are designed to provide significant energy savings in a variety of environmental conditions.



  • Fully Skid-mounted System-LWS.



  • Fully skid-mounted design.



  • Boiler and all auxiliary parts arrange together on one down base .Free of installation.



  • Current all type boilers could arrange skid-mounted.





Parameter



Model LWS0.05-0.7-Y.Q LWS0.1-0.7-Y.Q LWS0.15-0.7-Y.Q LWS0.2-0.7-Y.Q LWS0.3-0.7-Y.Q
Project Unit
Rated evaporation t/h 0.05 0.1 0.15 0.2 0.3
Rated working pressure MPa 0.7 0.7 0.7 0.7 0.7
Staturated steam temperature 170 170 170 170 170
Fuel consumption Light diesel oil kg/h 3.5 7 10.5 14 21
Natural gas Nm³/h 4 8 12 16 24
LPG Nm³/h 1.5 3 4.5 6 9
City gas Nm³/h 8.5 17 25.5 34 51
Dimension
a Main steam valve diameter DN 15 25 25 32 32
b Safety valve diameter DN 20 25 25 25 25
c Inlet diamater DN 15 20 20 20 20
d Blowoff Valve diameter DN 20 20 25 25 25
e Chimney diameter DN 100 120 150 150 200
Overall size L mm 870 1020 1150 1260 1270
W mm 930 1080 1260 1400 1570
W1 mm 640 760 890 970 1040
H mm 1660 1750 1840 2160 2400
H1 mm 1460 1480 1520 1840 2090
φ Diameter mm 630 750 880 960 1000
Weight kg 330 470 610 780 850

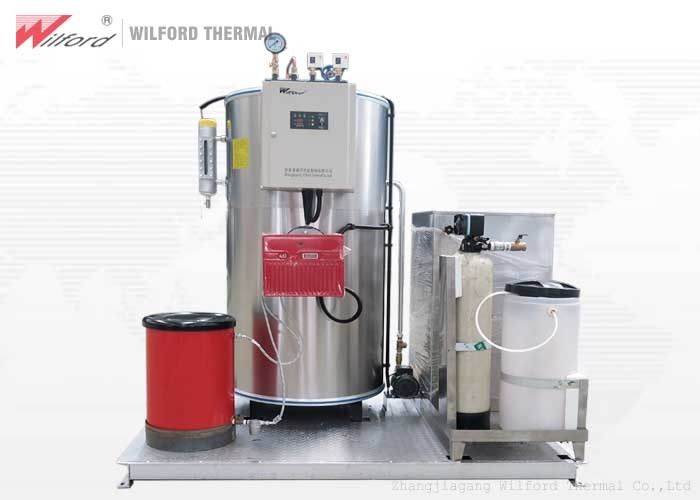

Product picture



Food Processing 200KG / H Skid Mounted Boiler Light Diesel Oil Fuel 0





Choose Us



  • Wilford company is specialized in manufacturing and selling steam boiler for many years .



  • Our worker have experience to produce machines professional and skilled,so the machine workes well with high quality.



  • All parts of our steam boiler are famous brand or in international,so it make sure our boiler have high quality with long lifetime.



  • Our company provides 24 hours online services and technical supports for customers.
