Product Details:
|
Rated Evaporation: | 6T/h | Rated Working Pressure: | 1.25Mpa |
---|---|---|---|
Staturated Steam Temperature: | 193℃ | Main Steam Valve Diamater: | 125DN |
Safety Valve Diameter: | 65*2DN | Weight: | 18.5T |
High Light: | 6T Natural Gas Fired Boiler,1.25Mpa Natural Gas Fired Boiler,1.25Mpa steam generator boiler |
Gas - Fired Steam Boilers For The Food Processing
Gas - Fired Steam Boilers introduction
Gas - Fired Steam Boilers Parameter
Model | WNS4 | WNS6 | WNS8 | WNS10 | WNS12 | WNS15 | WNS20 | ||
Project | Unit | ||||||||
Rated evaporation | t/h | 4 | 6 | 8 | 10 | 12 | 15 | 20 | |
Rated working pressure | MPa | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | |
Staturated steam temperature | ℃ | 193 | 193 | 193 | 193 | 193 | 193 | 193 | |
Fuel consumption | Light diesel oil | kg/h | 260 | 390 | 520 | 650 | 780 | 975 | 1300 |
Natural gas | Nm³/h | 280 | 420 | 560 | 700 | 840 | 1050 | 1400 | |
LPG | Nm³/h | 120 | 180 | 240 | 300 | 360 | 450 | 600 | |
City gas | Nm³/h | 680 | 1020 | 1360 | 1700 | 2040 | 2550 | 3400 | |
a Main steam valve diameter | DN | 100 | 125 | 150 | 150 | 200 | 200 | 250 | |
b Safety valve diameter | DN | 50×2 | 65×2 | 80×2 | 80×2 | 80×2 | 80×2 | 80×2 | |
c Inlet diamater | DN | 50 | 50 | 65 | 65 | 65 | 65 | 80 | |
d Blowoff Valve diameter | DN | 50 | 50 | 50 | 50 | 65 | 65 | 65 | |
e Chimney diameter | DN | 500 | 650 | 800 | 900 | 1000 | 1000 | 1250 | |
Overall size | L | mm | 6310 | 7200 | 7780 | 8330 | 8740 | 10730 | 11250 |
L1 | mm | 5230 | 5960 | 6320 | 7040 | 7450 | 8110 | 8360 | |
W | mm | 2950 | 3190 | 3440 | 3475 | 3475 | 3850 | 4395 | |
W1 | mm | 2350 | 2650 | 2980 | 3040 | 2700 | 2950 | 3250 | |
H | mm | 3120 | 3610 | 3700 | 3800 | 4050 | 4210 | 4650 | |
H1 | mm | 2530 | 2850 | 2920 | 3050 | 3280 | 3510 | 3820 | |
Weight | T | 13.8 | 18.5 | 20 | 23 | 30.1 | 36.5 | 49.5 |
Gas - Fired Steam Boilers Advantage
1 . Full combustion, good heat transfer effect
2 . Good sealing, no smoke leakage
3 . Large steam space, good steam quality
4 . Heat absorption balance of each part

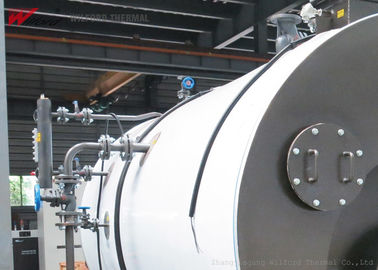

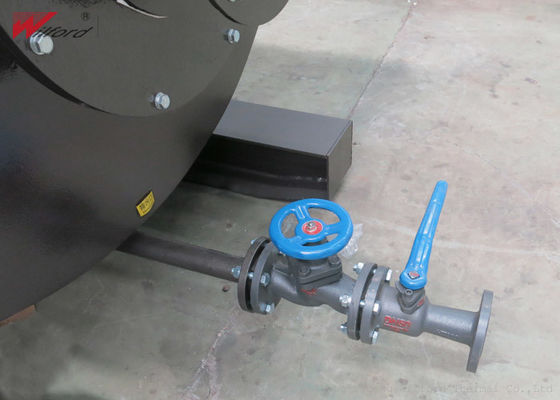

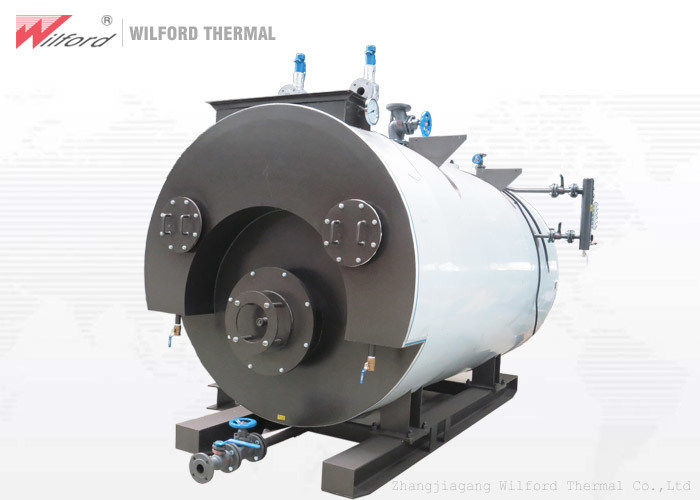

Gas - Fired Steam Boilers picture
Project case diagram
Application
