Garment Industry 1.2T/H Small Industrial Electric Steam Boiler

Garment Industry 1.2T/H Small Industrial Electric Steam Boiler
Garment Industry 1.2T/H Small Industrial Electric Steam Boiler Garment Industry 1.2T/H Small Industrial Electric Steam Boiler Garment Industry 1.2T/H Small Industrial Electric Steam Boiler

Large Image :  Garment Industry 1.2T/H Small Industrial Electric Steam Boiler

Product Details:
Place of Origin: China
Brand Name: WILFORD
Certification: CE
Model Number: WFD
Payment & Shipping Terms:
Minimum Order Quantity: 1 stand
Price: Negotiable
Packaging Details: Packing in wooden box
Delivery Time: 15-20 working days
Payment Terms: L/C, T/T
Supply Ability: 25 stand/stands per Month

Garment Industry 1.2T/H Small Industrial Electric Steam Boiler

Description
Rated Steam Capacity: 0.15-1.2T/h Rated Working Pressure: 0.7Mpa
Staturated Steam Temperature: 170℃ Input Power: 108-864KW
Rated Voltage: 380V Certification: CE,ISO,ISO9001
Output: Steam Usage: Industrial,swimming Pool,home&industrial Heating,Steam Outputing
Structure: Electric Heating Tube After-sales Service Provided: Engineers Available To Service Machinery Overseas
Warranty: 1 Year Thermal Efficiency: 98%
High Light:

1.2T/h Industrial Electric Steam Boiler

,

1.2T/h small electric steam boiler

,

864KW electric clean steam generator





0.15-1.2T/h Small Electric Steam Boiler For Industrial Textile Mill/Food/Garment Factory





Electric Steam Boiler Product introduction



  • All electrical components have CE and CCC marks to ensure product safety and service life.







  • Full automatic operation mode, simple operation, boiler start-up amd stop quickly. operating load adjustment range, applicable to various working conditions.

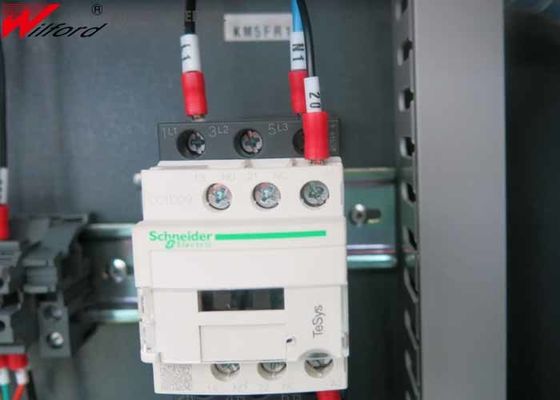

  • Use European heating tube, Incoloy800 stainless steel material (performance far exceeds 316L material) has strong anti-scale and corrosion resistance.Adopting French Schneider contactor, high efficiency, sensitive action, long life and low noise.



  • Full automatic operation mode, simple operation, boiler start-up amd stop quickly. operating load adjustment range, applicable to various working conditions.



  • Each group of electric heating element is connected with concentrated bundle flange, independent setting, high mechanical strength, safe and reliable. Easy to replace and long service life.



  • Vertical structure compact and beautiful, elegant shape, bright color, small floor area for easy installation, the modular design is for multiple parallel use.





Electric Steam Boiler  Parameter



                                                         WFD  Electrical Steam Boiler
Type WDR0.15-0.7 WDR0.2-0.7 WFD0.4-0.7 WFD0.6-0.7 WFD0.8-0.7 WFD1.0-0.7 WFD1.2-0.7
Project Unit
Rated evaporation t/h 0.15 0.2 0.4 0.6 0.8 1 1.2
Rated working pressure MPa 0.7 0.7 0.7 0.7 0.7 0.7 0.7
Staturated steam temperature 170 170 170 170 170 170 170
Input Power KW 108 144 288 432 576 720.00 864.00
Input current A 144 216 435 650 865.00 1080.00 1300
Rated Voltage V 380V
Power×Group KW×P 36KW*3 36KW*4 36KW*8 36KW*12 36KW*16 36KW*20 36KW*24
a Main steam valve diameter DN 25 25 40 40 50 50 65
b Safety valve diameter DN 25 25 25*2 25*3 25*4 25*5 25*6
c Inlet diamater DN 15 15 25 25 25 40 40
d Blowoff Valve diameter DN 25 25 25 25 25 25 25
Overall size L mm 1500 1500 1500 1500 1500 1500 1500
W mm 700 700 1400 2100 2800 3500 4200
H mm 1900 1900 1900 1900 1900 1900 1900
Weight T 200 200 400 650 820 1100 1300





Electric Steam Boiler  Our Factory



  • Since 1998, the company are insisted on intelligent and lean production as the leading factor to ensure that each product is super safe and high quality. The fuel, gas and electric heating boilers have high technical content. The company has won many inventions, many high-tech products and new technology and new product awards. We regard the boiler's efficiency index and extremely low nitrogen emission requirements as the main innovation objectives, Keep unremitting efforts in the environmental protection and energy saving of boilers.



  • Our products have obtained ASME, CE, SIGAPORE MOM, MALAYSIA DOSCH, AUSTRALIAN WORK SAFE, RUSSIA CU-TR and other certification, the local registration of various countries and other problems are very professional, we have a very strong service team, good service for each customer is our only pursuit.

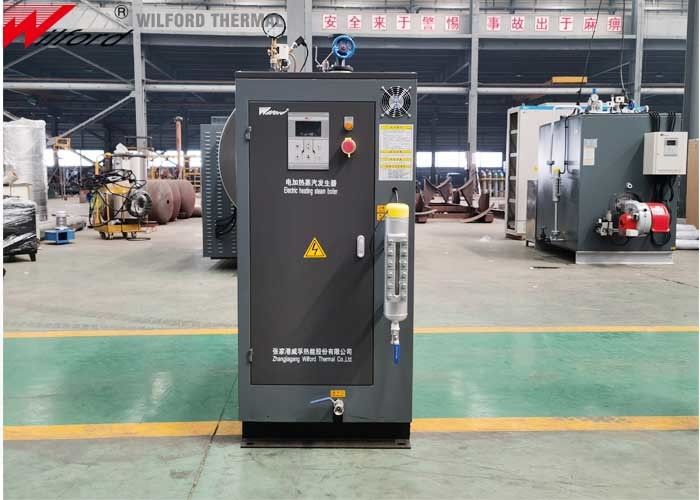

Electric Steam Boiler Picture



Garment Industry 1.2T/H Small Industrial Electric Steam Boiler 0
