Product Details:
|
| Rated Thermal Power: | 1.4-5.6MW | The Rated Steam Pressure: | 0.7-1.6Mpa |
|---|---|---|---|
| The Water Temperature: | 95-130℃ | Design Thermal Efficiency: | 80-82.3% |
| Fuel Consumption: | 351.3-1089kg/h | Safety: | Safe |
| High Light: | biomass fired hot water boiler,automatic water boiler |
||

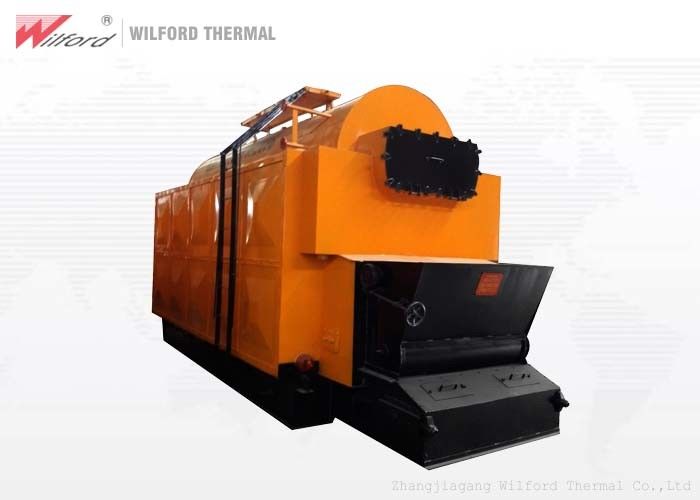

Professional Design Biomass Hot Water Boiler For Greenhouse
Product introduction
Parameter
| Type | DZL0.7 | DZL1.4 | DZL2.8 | DZL4.2 | DZL5.6 | DZL7 | ||
| Project | Unit | |||||||
| Rated thermal power | MW | 0.7(600000 kcal/h) | 1.4(1.2 million kcal/h) | 2.8(2.4 million kcal/h) | 4.2(3.6 million kcal/h) | 5.6(4.8 million kcal/h) | 7(6million kcal/h) | |
| The rated steam pressure | Mpa | 0.7,1.0,1.25,1.6 | ||||||
| The water temperature/return water temperature | ℃ | 95/70,115/70,130/70 | ||||||
| Avaible fuel | (AⅡ) | |||||||
| Design the thermal efficiency | ％ | 80.2 | 80.8 | 80 | 82.3 | 80.3 | 80.8 | |
| The fuel consumption | Kg/h | 129 | 351.3 | 693 | 1041.9 | 1089 | 1707.8 | |
| The transport dimension L*W*H | mm | 5200*2100*3000 | 5525*2440*3400 | 6081*2450*3500 | 8000*2700*3550 | 8000*2900*3550 | 8980*3200*3600 | |
| Boiler installation structure | The fast The assembly | |||||||
Advantage
1 . Biomass hot water boiler
2 . Arched tube plate design
3 . Ample heating surface, heated equilibrium
4 . The furnace is large and the combustion is more complete
5 . The water circulation system is reasonable
6 . High fuel utilization rate
7 . Reduce soot emissions
