Product Details:
|
Rated Evaporation: | 12-100kg/h | Rated Working Pressure: | 0.7Mpa |
---|---|---|---|
Input Power: | 9-72KW | Rated Voltage: | 3N AC 50HZ 380V |
Type: | Natural Circulation | Usage: | Industrial |
High Light: | portable electric steam generator,small electric steam generator |
High Efficiency Explosion Proof Electric Steam Generator for Industry
Product introduction
1. The safety of special equipment has always been concerned. Among them, explosion protection is the most important thing. It is related to people's life and property safety. Therefore, Weifu has customized a small number of small explosion-proof electric steam boilers for customers.
2. The production of explosion-proof boilers is equivalent to the double safety of the original boiler safety, and strengthens the safety function, thus providing users with a safe and stable experience.
3. Our factory is equipped with special facilities such as large-scale professional nuclear radiation nondestructive testing room and water pressure test. Specialized production of boilers and pressure vessels. Each product must be tested according to the requirements of the specification before leaving the factory.
Parameter
Model | LDR0.012-0.7 | LDR0.016-0.7 | LDR0.025-0.7 | LDR0.035-0.7 | LDR0.05-0.7 | LDR0.06-0.7 | LDR0.08-0.7 | LDR0.1-0.7 | LDR0.125-0.7 | ||
Project | UNIT | ||||||||||
Rated evaporation | Kg/h | 12 | 16 | 25 | 35 | 50 | 60 | 80 | 100 | 125 | |
Rated working pressure | MPa | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | |
Saturated steam temperature | ℃ | 170 | 170 | 170 | 170 | 170 | 170 | 170 | 170 | 170 | |
Input power | KW | 9 | 12 | 18 | 27 | 36 | 40 | 54 | 72 | 90 | |
Input current | A | 14 | 18 | 27 | 41 | 54 | 60 | 81 | 108 | 135 | |
Rated voltage | V | 3N AC 50Hz 380V | |||||||||
a Main steam valve diameter | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 25 | 25 | |
b Safety valve diameter | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 25 | 25 | |
c Inlet diamater | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | |
d Blowoff valve diameter | DN | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 20 | 20 | |
Overall size |
L | mm | 540 | 540 | 540 | 540 | 650 | 650 | 650 | 800 | 800 |
W | mm | 650 | 650 | 650 | 650 | 660 | 660 | 660 | 800 | 800 | |
H | mm | 980 | 980 | 1100 | 1100 | 1380 | 1380 | 1380 | 1580 | 1580 | |
Weight | kg | 90 | 95 | 105 | 110 | 130 | 130 | 135 | 195 | 195 | |
According to customer order requirements, the company can provide customized products for specific power supply in the world. |
Advantage

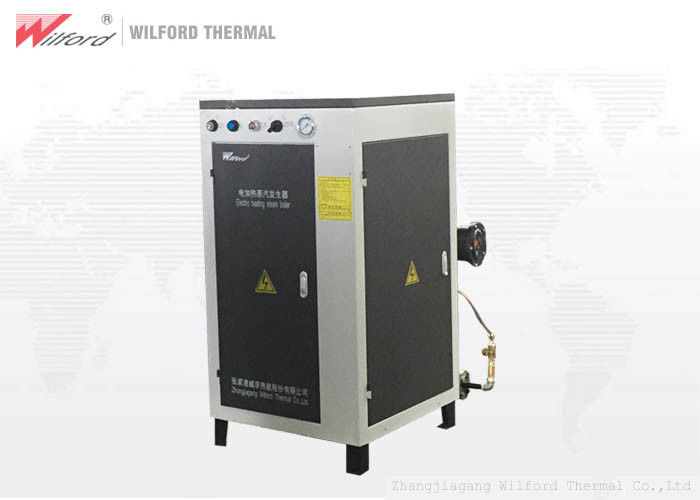

Product picture
