High Safety Industrial Hot Water Boiler Compact Structure For Hotel Bath

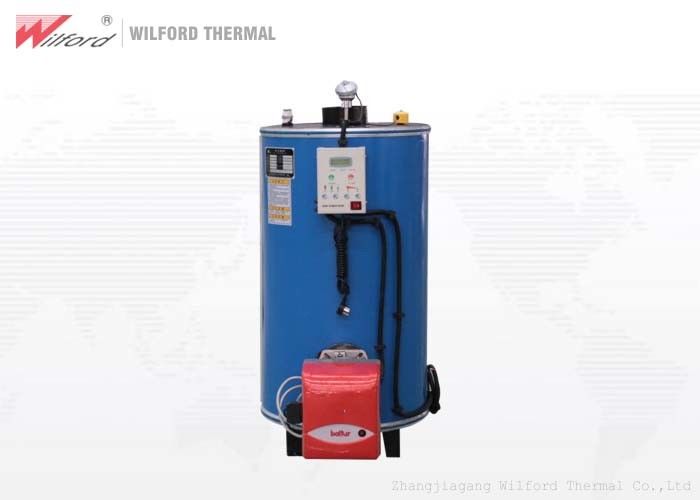

Large Image : High Safety Industrial Hot Water Boiler Compact Structure For Hotel Bath

Product Details:

Place of Origin:	China
Brand Name:	WILFORD
Certification:	CE
Model Number:	CLHS

Payment & Shipping Terms:

Minimum Order Quantity:	1 stand
Price:	Negotiable
Packaging Details:	Packing in wooden box
Delivery Time:	15-20 working days
Payment Terms:	L/C, T/T
Supply Ability:	10 stand/stands per Month

Contact Now

High Safety Industrial Hot Water Boiler Compact Structure For Hotel Bath

Description

Rated Thermal Power:	0.06-1.7MW	Total Heating Capacity:	50000-150000kcal
Water Inlet Diameter:	50/65DN	Water Outlet Diameter:	50/65DN
Overall Size:	Depends	Weight:	270-450kg
High Light:	oil water boiler , industrial hot water boiler

Industrial Vertical Oil Fired Hot Water Boiler For Hotel Bath

Product introduction

CLHS series boiler, vertical structure, compact structure and beautiful appearance.

Compared with other fuel gas hot water boilers, it is smaller in size and requires less installation space and is easy to install.

Its burner is imported, with high combustion efficiency and low noise.

It has a small amount of soot emissions and a low NOx.

The unique "self-cleaning" function greatly improves the heat transfer effect and reduces heat loss.

The entire operation process is intelligent, automated, safe and efficient.

The protection function is very complete and absolutely safe.

Parameter

Type			CLHS0.06-95/70-Y.Q	CLHS0.12-95/70-Y.Q	CLHS0.17-95/70-Y.Q	CLHS0.23-95/70-Y.Q
Project		Unit	CLHS0.06-95/70-Y.Q	CLHS0.12-95/70-Y.Q	CLHS0.17-95/70-Y.Q	CLHS0.23-95/70-Y.Q
Rated thermal power		MW	0.06	0.12	0.17	0.23
Total heat capacity		104kcal	5	10	15	20
Rated working pressure		MPa	Ordinary Pressure
Fuel consumption	Light diesel oil	kg/h	5.4	10.8	16.2	21.6
	Natural gas	Nm3/h	5.8	11.7	17.5	23.4
	LPG	Nm3/h	2.5	5	7.5	10
	City gas	Nm3/h	14.2	28.3	42.5	56.6
Water inlet diameter		DN	50	65	65	65
Water outlet diameter		DN	50	65	65	65
Blowoff valve diameter		DN	25	25	25	25
Voltage		V	220	220	220	220
Overall size	Length	mm	800	980	1150	1250
	Width	mm	700	850	900	1000
	Height	mm	1300	1650	1800	1950
Weight		kg	270	410	450	520
