High Security Gas Oil Heater With Precision Temperature Control System

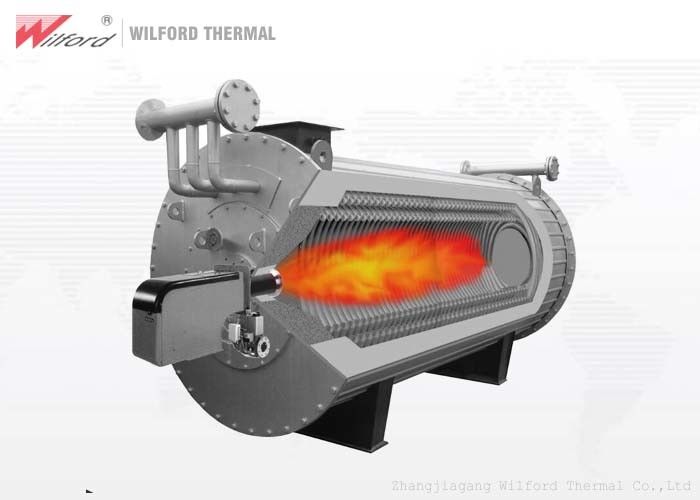

Large Image : High Security Gas Oil Heater With Precision Temperature Control System

Product Details:

Place of Origin:	China
Brand Name:	WILFORD
Certification:	CE
Model Number:	YY(Q)W

Payment & Shipping Terms:

Minimum Order Quantity:	1 stand
Price:	Negotiable
Packaging Details:	Packing in wooden box
Delivery Time:	15-20 working days
Payment Terms:	L/C, T/T
Supply Ability:	10 stand/stands per Month

Contact Now

High Security Gas Oil Heater With Precision Temperature Control System

Description

Rated Thermal Power:	1200-3500KW	Heating Efficiency:	90-92%
Design Pressure:	1-1.1Mpa	Total Heating Capacity:	1000000-3000000kcal
Medium Highest Temper:	350℃	Usage:	Heating Engineering
High Light:	hot oil heater , heat transfer oil furnace

Large Automatic Gas Fired Thermal Oil Heater For Heating Engineering

Product introduction

Extremely flexible and simple installation.Just place the boiler on the foundation.

Heating area is the closely-aligned round coils.Heating area is arranged sufficiently to reduce the surface heat load of pipe and handle the heat transfer oil safely.

Size of hearth matches the combustion flame.Use the barotropic combustion to increase the radiation heating efficiency.

Compact boiler saves the space of boiler room greatly.

Air preheater is mounted at the tail of large boiler to improve the efficency.

Parameter

Description		Unit	600	850	1200	1400	1800	2400	3500	4100	6000
Description		Unit	Y(Q)	Y(Q)	Y(Q)	Y(Q)	Y(Q)	Y(Q)	Y(Q)	Y(Q)	Y(Q)
Rated thermal power (KW)		KW/104kcal	600/50	850/75	1200/100	1400/125	1800/150	2400/200	3500/300	4100/350	6000/500
Heating efficiency (≥%)		%	90	90	90	92	92	92	92	92	92
Design pressure		Mpa	1	1	1	1	1	1	1.1	1.1	1.1
Medium highest temperature		℃	350	350	350	350	350	350	350	350	350
Medium capacity of boiler		m³	0.4	0.52	0.76	0.95	1.48	2.1	2.4	2.53	6.1
Medium circulation volume		m³/h	80	80	100	100	160	200	200	200	300
DN of oil outlet		DN	100	100	125	125	150	200	200	200	250
Whole system installed capacity	Oil	KW	30	40	40	45	50	70	70	70	150
Whole system installed capacity	Gas	KW	30	40	40	45	50	70	70	70	150
Total weight of equipment		KG	3530	4500	5600	6200	9500	10500	13500	16065	28850
External dimension	Length	mm	3650	4100	5500	5700	5900	6500	8000	8200	9000
	Width	mm	1500	1700	2100	2100	2100	2300	2400	2500	3200
	Height	mm	1870	2100	2400	2400	2550	2750	2900	3000	3600
Transport dimension	Length	mm	3250	3800	4600	4850	5100	5800	6800	7200	7800
	Width	mm	1500	1700	2100	2100	2100	2300	2400	2500	3200
	Height	mm	1870	2100	2400	2400	2550	2750	2900	3000	3600
