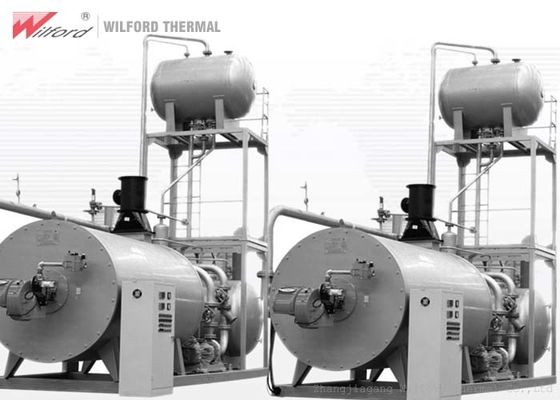

High Temperature Thermal Oil Heater Gas Fired With Safety Monitoring Device

High Temperature Thermal Oil Heater Gas Fired With Safety Monitoring Device
High Temperature Thermal Oil Heater Gas Fired With Safety Monitoring Device

Large Image :  High Temperature Thermal Oil Heater Gas Fired With Safety Monitoring Device

Product Details:
Place of Origin: China
Brand Name: WILFORD
Certification: CE
Model Number: YY(Q)W
Payment & Shipping Terms:
Minimum Order Quantity: 1 stand
Price: Negotiable
Packaging Details: Export wooden Packing
Delivery Time: 15-20 working days
Payment Terms: L/C, T/T
Supply Ability: 10 stand/stands per Month

High Temperature Thermal Oil Heater Gas Fired With Safety Monitoring Device

Description
Rated Thermal Power: 1200-1400KW Heating Efficiency: 90-92%
Total Heating Capacity: 1000000-1250000kcal Medium Highest Temper: 350℃
Medium Capacity Of Boiler: 0.76-0.95m³ Medium Circulation Volume: 100m³/h
High Light:

thermic oil heater

,

heat transfer oil furnace





High Temperature Gas Fired Thermal Oil Heater In Material Industry





Product introduction



  • It belongs to special industrial boilers, safe and efficient.



  • The heat pump can be used to transfer heat to the heating equipment.



  • It is mainly composed of a hot oil pump, an explosion-proof electric heater, an expansion tank and the like.



  • With safety monitoring device, it is fully equipped and can control temperature.



  • Adopt advanced explosion-proof structure, the explosion-proof grade can reach C grade, and the safety is high.




Parameter



Description Unit 600 850 1200 1400 1800 2400 3500 4100 6000
Y(Q) Y(Q) Y(Q) Y(Q) Y(Q) Y(Q) Y(Q) Y(Q) Y(Q)
Rated thermal power (KW) KW/104kcal 600/50 850/75 1200/100 1400/125 1800/150 2400/200 3500/300 4100/350 6000/500
Heating efficiency (≥%) % 90 90 90 92 92 92 92 92 92
Design pressure Mpa 1 1 1 1 1 1 1.1 1.1 1.1
Medium highest temperature 350 350 350 350 350 350 350 350 350
Medium capacity of boiler 0.4 0.52 0.76 0.95 1.48 2.1 2.4 2.53 6.1
Medium circulation volume m³/h 80 80 100 100 160 200 200 200 300
DN of oil outlet DN 100 100 125 125 150 200 200 200 250
Whole system installed capacity Oil KW 30 40 40 45 50 70 70 70 150
Gas KW 30 40 40 45 50 70 70 70 150
Total weight of equipment KG 3530 4500 5600 6200 9500 10500 13500 16065 28850
External dimension Length mm 3650 4100 5500 5700 5900 6500 8000 8200 9000
Width mm 1500 1700 2100 2100 2100 2300 2400 2500 3200
Height mm 1870 2100 2400 2400 2550 2750 2900 3000 3600
Transport dimension Length mm 3250 3800 4600 4850 5100 5800 6800 7200 7800
Width mm 1500 1700 2100 2100 2100 2300 2400 2500 3200
Height mm 1870 2100 2400 2400 2550 2750 2900 3000 3600




Advantage



1 . Thermal efficiency is up to 100% or more


2 . The heating surface is large and the heat absorption effect is good


3 . High temperature control accuracy


4 . Low pressure, high temperature


5 . Small heat loss


6 . Energy saving effect is remarkable
