Product Details:
|
| Rated Thermal Power: | 0.7-2.1MW | Total Heating Capacity: | 600000-1800000kcal |
|---|---|---|---|
| Voltage: | 380V | Water Inlet Diameter: | 100-200DN |
| Water Outlet Diameter: | 100-200DN | Weight: | 2450-4520kg |
| High Light: | lpg hot water boiler,gas powered water boiler |
||

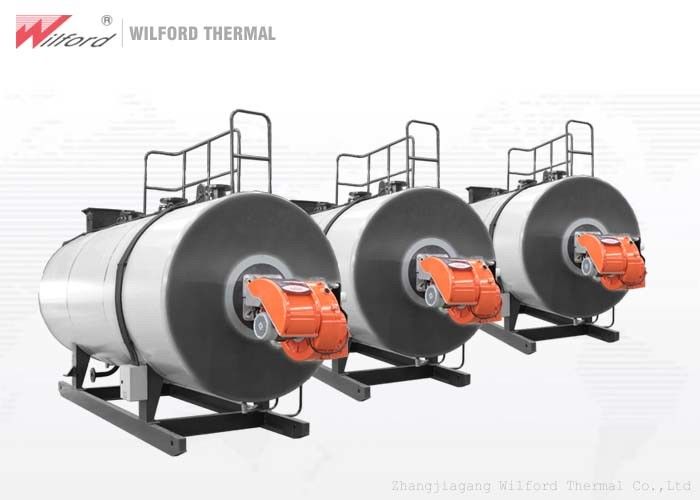

LPG Fired Hot Water Boiler For Hotel Bath
Product introduction
1 . This is a hot water boiler with a large combustion chamber, which has large capacity and high thermal efficiency.
2 . Its convection pipe is threaded and heat transfer is sufficient to avoid heat loss.
3 . Special large furnace design, high utilization rate of heating surface.
4 . Use the thermal insulation material of the high heat group to minimize heat loss.
5 . It can automatically adjust the heating temperature according to the change of outdoor temperature, saving energy and high efficiency.
6 . The burner has low noise, good performance, full combustion and environmental protection.
7 . Install a variety of safety devices, please feel free to use.
Parameter
| Type | CWNS0.7-95/70-Y.Q | CWNS1.05-95/70-Y.Q | CWNS1.4-95/70-Y.Q | CWNS1.75-95/70-Y.Q | CWNS2.1-95/70-Y.Q | CWNS2.8-95/70-Y.Q | ||
| Project | Unit | |||||||
| Rated thermal power | MW | 0.7 | 1.05 | 1.4 | 1.75 | 2.1 | 2.8 | |
| Total heat capacity | 104kcal | 60 | 90 | 120 | 150 | 180 | 240 | |
| Rated working pressure | MPa | Ordinary Pressure | ||||||
| Fuel consumption | Light diesel oil | kg/h | 65 | 97.5 | 130 | 162 | 195 | 260 |
| Natural gas | Nm3/h | 70 | 105 | 140 | 175 | 210 | 280 | |
| LPG | Nm3/h | 30 | 45 | 60 | 75 | 90 | 120 | |
| City gas | Nm3/h | 170 | 255 | 340 | 425 | 510 | 680 | |
| Water inlet diameter | DN | 100 | 125 | 150 | 150 | 200 | 200 | |
| Water outlet diameter | DN | 100 | 125 | 150 | 150 | 200 | 200 | |
| Blowoff valve diameter | DN | 50 | 50 | 50 | 50 | 65 | 65 | |
| Voltage | V | 380 | 380 | 380 | 380 | 380 | 380 | |
Overall size |
Length | mm | 3020 | 3230 | 3650 | 4100 | 4550 | 5600 |
| Width | mm | 1700 | 1750 | 1820 | 1890 | 1930 | 2000 | |
| Height | mm | 1880 | 1960 | 2050 | 2100 | 2150 | 2270 | |
| Weight | kg | 2450 | 2780 | 3500 | 3860 | 4520 | 6300 | |
Feature
