Laundry Room Chamber LPG 2 Ton Gas Fired Steam Boiler

Laundry Room Chamber LPG 2 Ton Gas Fired Steam Boiler
Laundry Room Chamber LPG 2 Ton Gas Fired Steam Boiler Laundry Room Chamber LPG 2 Ton Gas Fired Steam Boiler Laundry Room Chamber LPG 2 Ton Gas Fired Steam Boiler

Large Image :  Laundry Room Chamber LPG 2 Ton Gas Fired Steam Boiler

Product Details:
Place of Origin: China
Brand Name: WILFORD
Certification: CE
Model Number: WNS
Payment & Shipping Terms:
Minimum Order Quantity: 1 stand
Price: Negotiable
Packaging Details: Packing in wooden box
Delivery Time: 15-20 working days
Payment Terms: L/C, T/T
Supply Ability: 100 stand/stands per Month
Contact Now

Laundry Room Chamber LPG 2 Ton Gas Fired Steam Boiler

Description
Rated Evaporation: 1-2t/h Rated Working Pressure: 0.7/1.0
Staturated Steam Temperature: 170/184℃ Fuel Consumption: Liquefied Gas/Natural Gas
Safety Valve Diameter: 50/40*2DN Weight: 4.6-6.3T
High Light:

2 Ton Gas Fired Steam Boiler

,

LPG fire tube steam boiler

,

Chamber lpg steam boiler

Laundry Room LPG Steam Boiler High Availability Large Combustion Chamber Design





LPG Steam Boiler introduction



  • Pre-post purge function to improve burner operating conditions and extend life.



  •  Large combustion chamber design, large heating area, full combustion and high thermal efficiency.



  • Large steam room and high quality steam.



  • Aboved horizontal structure boiler ,with adequate heating area, full heat transfer ,stable operating under load revise ,high combustion efficiency.



  • Boiler furnace located at low position ,ensurethe safety range of the water level.





LPG Steam Boiler Parameter



Model WNS0.5 WNS1 WNS1.5 WNS2 WNS3 WNS4
Project Unit
Rated evaporation t/h 0.5 1 1.5 2 3 4
Rated working pressure MPa 0.7 1 1 1 1 1.25
Staturated steam temperature ℃ 170 184 184 184 184 193
Fuel consumption Light diesel oil kg/h 35 70 105 140 210 260
Natural gas Nm³/h 40 80 120 160 240 280
LPG Nm³/h 15 30 45 60 90 120
City gas Nm³/h 85 170 250 340 510 680
a Main steam valve diameter DN 40 65 65 80 80 100
b Safety valve diameter DN 40 50 50 40×2 40×2 50×2
c Inlet diamater DN 25 25 40 40 40 50
d Blowoff Valve diameter DN 40 40 40 50 50 50
e Chimney diameter DN 250 300 350 400 450 500
Overall size L mm 3800 4500 4700 4800 5500 6310
L1 mm 3100 3200 3600 3800 4500 5230
W mm 1900 2300 2800 2900 2900 2950
W1 mm 1000 1880 1900 2150 2350 2350
H mm 2100 2680 2950 3250 3880 3120
H1 mm 1800 1980 2070 2250 2450 2530
Weight T 3.3 4.6 5.5 6.3 10.6 13.8





LPG Steam Boiler  Advantage



1. High combustion efficiency and low energy consumption


2. Good steam quality


3. High availability


4. Large water level safety range


5. Multiple protection chains

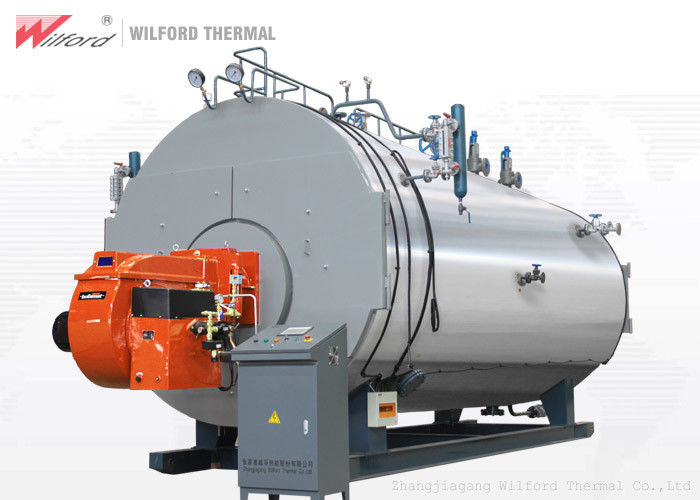

LPG Steam Boiler picture



Laundry Room Chamber LPG 2 Ton Gas Fired Steam Boiler 0

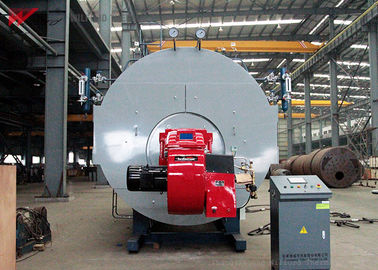

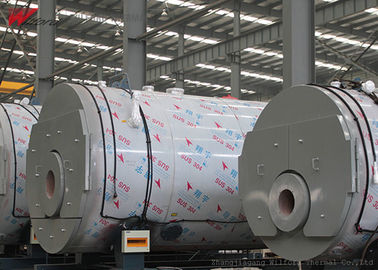

Project case diagram



Laundry Room Chamber LPG 2 Ton Gas Fired Steam Boiler 1
