PLC Control Industrial Electric Steam Boiler , High Efficiency Steam Boiler

PLC Control Industrial Electric Steam Boiler , High Efficiency Steam Boiler
PLC Control Industrial Electric Steam Boiler , High Efficiency Steam Boiler PLC Control Industrial Electric Steam Boiler , High Efficiency Steam Boiler PLC Control Industrial Electric Steam Boiler , High Efficiency Steam Boiler

Large Image :  PLC Control Industrial Electric Steam Boiler , High Efficiency Steam Boiler

Product Details:
Place of Origin: China
Brand Name: WILFORD
Certification: CE
Model Number: WDR
Payment & Shipping Terms:
Minimum Order Quantity: 1 stand
Price: Negotiable
Packaging Details: Packing in wooden box
Delivery Time: 15-20 working days
Payment Terms: L/C, T/T
Supply Ability: 50 stand/stands per Month

PLC Control Industrial Electric Steam Boiler , High Efficiency Steam Boiler

Description
Product Name: Industrial Electric Steam Boiler For Sale Type: Natural Circulation
Usage: Industrial Rated Evaporation: 2T/h
Rated Working Pressure: 1.0/1.25MPa Weight: 2.8/3.3T
High Light:

electric steam boiler

,

electric heating steam boiler





Good Efficiency Industrial Electric Steam Boiler For Sale





Product introduction



  • Above products are powerful horizontal steam boilers.Electrical heating tube is high quality with service life around 20,000 hours.Thermal efficiency is nearly 99%, environment friendly.



  • Independent design,simple structure, high mechanical strength, safe and reliable.



  • It has a large steam room steam and good quality.



  • Separate the furnace body and the electric control cabinet to ensure that the life of the boiler is not affected by the aging of the electrical components.



  • PLC microcomputer programmable control system;realizes automatic control via the HMI.





Parameter



Type   WDR0.75 WDR1 WDR1.5 WDR2 WDR3 WDR4
Project Unit
Rated evaporation t/h 0.75 1 1.5 2 3 4
Rated working pressure MPa 1.0/1.25 1.0/1.25 1.0/1.25 1.0/1.25 1.0/1.25 1.0/1.25
Staturated steam temperature 184/193 184/193 184/193 184/193 184/193 184/193
Input Power KW 540 720 1080 1440 2160 2880
Input current A 810 1080 1620 2160 3240 4320
Rated pressure V 3N AC 50Hz 380V
Power×Group KW×P 36×15 36×20 36×30 36×40 36×60 36×80
Dimension
a Main steam valve diameter DN 40 40 65 65 80 100
b Safety valve diameter DN 2×40 2×40 2×40 2×40 2×40 2×50
c Inlet diamater DN 25 25 25 25 40 40
d Blowoff Valve diameter DN 40 40 40 40 40 40
Overall size L mm 2800 2950 3450 3500 3950 4100
L1 mm 2400 2500 3050 2880 3200 3550
W mm 1800 1900 2180 2000 2100 2300
W1 mm 1550 1600 1430 1880 1980 2120
H mm 1550 1600 2100 2500 2650 2980
H1 mm 1300 1350 1850 1900 2100 2200
Electrical control cabinet size ALength mm 1200 1200 1500 2200 2000(2) 2200(2)
BWidth mm 500 600 600 700 700 700
CHight mm 1800 1800 2000 2000 2200 2200
Weight T 1.6/2.0 1.8/2.2 2.2/2.7 2.8/3.3 3.5/4.1 4.5/5.2





Advantage



1 . All electrical components are certified


2 . High quality electric heating tube


3 . Electric heating element, high mechanical strength, independent design


4 . Large steam space


5 . Can be used in single or multiple units in parallel


6 . Fully automatic operation mode, safety

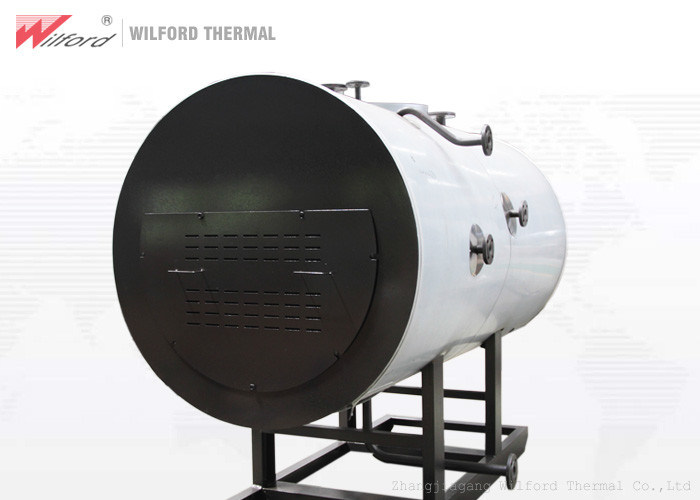

Product picture



PLC Control Industrial Electric Steam Boiler , High Efficiency Steam Boiler 0





 Project case diagram





PLC Control Industrial Electric Steam Boiler , High Efficiency Steam Boiler 1
