Small Footprint High Efficiency Steam Boiler Skid Mounted For Industrial Production

Large Image : Small Footprint High Efficiency Steam Boiler Skid Mounted For Industrial Production

Product Details:

Place of Origin:	China
Brand Name:	WILFORD
Certification:	CE
Model Number:	LWS

Payment & Shipping Terms:

Minimum Order Quantity:	1 stand
Price:	Negotiable
Packaging Details:	Packing in wooden box
Delivery Time:	15-20 working days
Payment Terms:	L/C, T/T
Supply Ability:	10 stand/stands per Month

Contact Now

Small Footprint High Efficiency Steam Boiler Skid Mounted For Industrial Production

Description

Rated Evaporation:	100kg/h	Rated Working Pressure:	0.7Mpa
Main Steam Valve Diameter:	25DN	Water Inlet Diameter:	20DN
Blowoff Valve Diameter:	20DN	Usage:	Industrial Production
High Light:	commercial steam generator , high efficiency steam boiler

High Burning Efficiency Skid - Mounted Steam Boiler For Industrial Production

Product introduction

The product is the LWS boiler system.

The fuel steam boiler and other accessories are all mounted on a base.

Its accessories are: daily fuel tank, soft water tank, water treatment, etc.

Small footprint, easy to operate and migrate.

Easy to install, greatly reducing the workload of the current installation.

The corresponding boiler parameters can be customized according to customer requirements.

Parameter

Model			LWS0.05-0.7-Y.Q	LWS0.1-0.7-Y.Q	LWS0.15-0.7-Y.Q	LWS0.2-0.7-Y.Q	LWS0.3-0.7-Y.Q
Project		Unit	LWS0.05-0.7-Y.Q	LWS0.1-0.7-Y.Q	LWS0.15-0.7-Y.Q	LWS0.2-0.7-Y.Q	LWS0.3-0.7-Y.Q
Rated evaporation		t/h	0.05	0.1	0.15	0.2	0.3
Rated working pressure		MPa	0.7	0.7	0.7	0.7	0.7
Staturated steam temperature		℃	170	170	170	170	170
Fuel consumption	Light diesel oil	kg/h	3.5	7	10.5	14	21
	Natural gas	Nm³/h	4	8	12	16	24
	LPG	Nm³/h	1.5	3	4.5	6	9
	City gas	Nm³/h	8.5	17	25.5	34	51
Dimension
a Main steam valve diameter		DN	15	25	25	32	32
b Safety valve diameter		DN	20	25	25	25	25
c Inlet diamater		DN	15	20	20	20	20
d Blowoff Valve diameter		DN	20	20	25	25	25
e Chimney diameter		DN	100	120	150	150	200
Overall size	L	mm	870	1020	1150	1260	1270
	W	mm	930	1080	1260	1400	1570
	W1	mm	640	760	890	970	1040
	H	mm	1660	1750	1840	2160	2400
	H1	mm	1460	1480	1520	1840	2090
	φ Diameter	mm	630	750	880	960	1000
Weight		kg	330	470	610	780	850

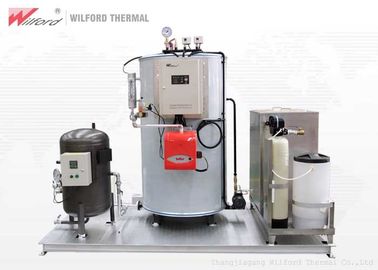

Product picture

Application

Planting in greenhouses, fertilizer plants in the chemical industry, refineries, feed mills, painting plants, plastics factories, glass factories, and sulfuric acid plants.
