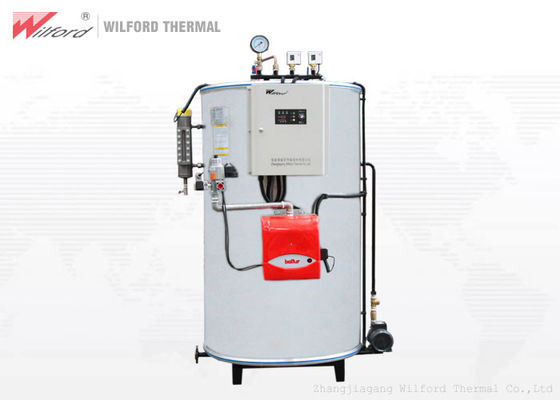

Sufficient Heat Transfer 0.3 T/H Gas Fired Steam Boilers

Large Image : Sufficient Heat Transfer 0.3 T/H Gas Fired Steam Boilers

Product Details:

Place of Origin:	China
Brand Name:	WILFORD
Certification:	CE
Model Number:	LWS

Payment & Shipping Terms:

Minimum Order Quantity:	1 stand
Price:	Negotiable
Packaging Details:	Packing in wooden box
Delivery Time:	15-20 working days
Payment Terms:	L/C, T/T
Supply Ability:	25 stand/stands per Month

Contact Now

Sufficient Heat Transfer 0.3 T/H Gas Fired Steam Boilers

Description

Rated Evaporation:	0.1/0.15/0.2/0.3T/h	Rated Working Pressure:	0.7Mpa
Main Steam Valve Diameter:	25/32DN	Water Inlet Diameter:	20DN
Chimney Diameter:	120/150/200DN	Fuel:	Natural Gas/Liquefied Gas/Pipeline Gas
High Light:	0.3 T/H lpg fired steam boiler , Sufficient gas powered steam boiler

0.1 - 0.3 T/H LWS Series Gas Fired Steam Boilers Sufficient Heat Transfer

Product introduction

The type of gas fired steam boiler is No water tube or fire tube ,avoid scaled.

Strong water adapt ability , LWS series gas fired steam boiler will not burn ing because of scaling .It highly reduces the maintenance cost.

Large-capacity steam room, located on top part of boiler. Separation measures in the pot and under the water to ensure high quality steam at any time.

Vertical structure ,compact and beautiful, elegant style,bright color ,save room space and easily installation.

Parameter

Model(gas fired steam boiler )			LWS0.05-0.7-Y.Q	LWS0.1-0.7-Y.Q	LWS0.15-0.7-Y.Q	LWS0.2-0.7-Y.Q	LWS0.3-0.7-Y.Q
Project		Unit	LWS0.05-0.7-Y.Q	LWS0.1-0.7-Y.Q	LWS0.15-0.7-Y.Q	LWS0.2-0.7-Y.Q	LWS0.3-0.7-Y.Q
Rated evaporation		t/h	0.05	0.1	0.15	0.2	0.3
Rated working pressure		MPa	0.7	0.7	0.7	0.7	0.7
Staturated steam temperature		℃	170	170	170	170	170
Fuel consumption	Light diesel oil	kg/h	3.5	7	10.5	14	21
	Natural gas	Nm³/h	4	8	12	16	24
	LPG	Nm³/h	1.5	3	4.5	6	9
	City gas	Nm³/h	8.5	17	25.5	34	51
Dimension
a Main steam valve diameter		DN	15	25	25	32	32
b Safety valve diameter		DN	20	25	25	25	25
c Inlet diamater		DN	15	20	20	20	20
d Blowoff Valve diameter		DN	20	20	25	25	25
e Chimney diameter		DN	100	120	150	150	200
Overall size	L	mm	870	1020	1150	1260	1270
	W	mm	930	1080	1260	1400	1570
	W1	mm	640	760	890	970	1040
	H	mm	1660	1750	1840	2160	2400
	H1	mm	1460	1480	1520	1840	2090
	φ Diameter	mm	630	750	880	960	1000
Weight		kg	330	470	610	780	850
