Product Details:
|
| Rated Evaporation: | 25-100kg/h | Input Power: | 18-72KW |
|---|---|---|---|
| Input Current: | 27-108A | Rated Voltage: | 3N AC 50HZ 380V |
| Overall Size: | Different | Weight: | 105-180kg |
| Highlight: | portable electric steam generator,small electric steam generator |
||
Full Automatic Electric Steam Generator For washing Ironing Industry
Product introduction
1 . As a test-free product, the procedure is simple.
2 . The water capacity is less than 30L, the steam quality is good, and the usability is strong.
3 . It can realize automatic water level control and pressure control for continuous and uninterrupted work.

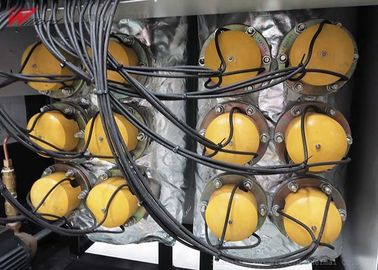

4 . The use of high quality heating tubes and controllers extends the life of the equipment.
5 . It is suitable for various working conditions and can achieve constant output of pressure.
6 . The entire device is compact, easy to move and install.
Parameter
| Model | LDR0.025-0.7 | LDR0.035-0.7 | LDR0.05-0.7 | LDR0.06-0.7 | LDR0.08-0.7 | LDR0.1-0.7 | ||
| Project | UNIT | |||||||
| Rated evaporation | Kg/h | 25 | 35 | 50 | 60 | 80 | 100 | |
| Rated working pressure | MPa | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | |
| Saturated steam temperature | ℃ | 170 | 170 | 170 | 170 | 170 | 170 | |
| Input power | KW | 18 | 27 | 36 | 40 | 54 | 72 | |
| Input current | A | 27 | 41 | 54 | 60 | 81 | 108 | |
| Rated voltage | V | 3N AC 50Hz 380V | ||||||
| a Main steam valve diameter | DN | 15 | 15 | 15 | 15 | 15 | 25 | |
| b Safety valve diameter | DN | 15 | 15 | 15 | 15 | 15 | 25 | |
| c Inlet diamater | DN | 15 | 15 | 15 | 15 | 15 | 15 | |
| d Blowoff valve diameter | DN | 15 | 15 | 15 | 15 | 15 | 20 | |
Overall size |
L | mm | 680 | 680 | 750 | 750 | 750 | 750 |
| W | mm | 600 | 600 | 600 | 680 | 680 | 660 | |
| H | mm | 950 | 950 | 1200 | 1200 | 1200 | 1450 | |
| Weight | kg | 105 | 115 | 130 | 150 | 160 | 180 | |
Advantage

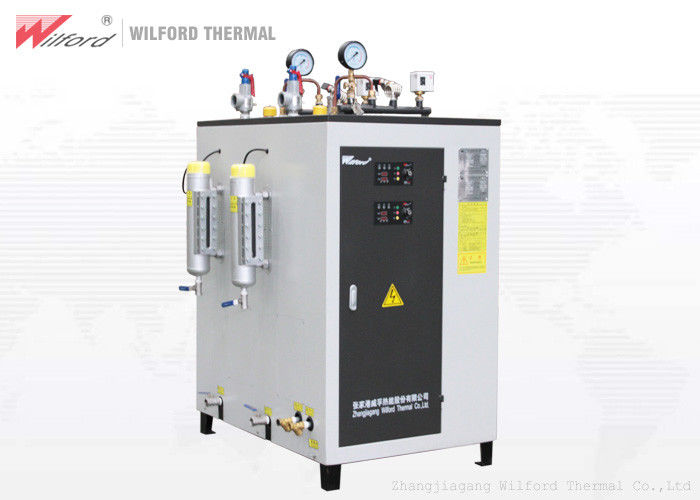

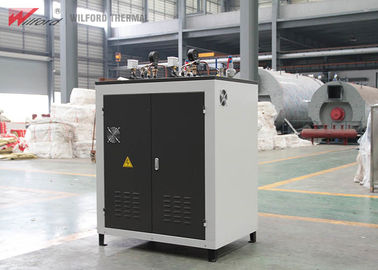

Product picture
Project case diagram
