WNS6 6T/H High Efficiency LPG / Oil Fired Steam Boiler

Large Image : WNS6 6T/H High Efficiency LPG / Oil Fired Steam Boiler

Product Details:

Place of Origin:	China
Brand Name:	WILFORD
Model Number:	WNS

Payment & Shipping Terms:

Minimum Order Quantity:	1 stand
Price:	Negotiable
Packaging Details:	Packing in wooden box
Delivery Time:	15-20 working days
Payment Terms:	L/C, T/T
Supply Ability:	25 stand/stands per Month

Contact Now

WNS6 6T/H High Efficiency LPG / Oil Fired Steam Boiler

Description

Condition:	New	Usage:	Industrial
Rated Evaporation:	0.5-6T/h	Rated Working Pressure:	0.7-1.25Mpa
Weight:	3.3-18.5T	Dimension(LWH):	Depends
High Light:	6T/H High Efficiency Gas Boiler , WNS6 High Efficiency Gas Boiler , 6T/H horizontal steam boiler

High Efficiency Natural Gas Steam Boiler Strong Structural Strength

High Efficiency Natural Gas Steam Boiler introduction

Advanced design: three-way full wet back structure

The corrugated furnace is used, the furnace is arranged at a low position, and the water level is safe.

With a variety of alarm interlocks to ensure efficient, safe and reliable operation of the boiler.

Before leaving the factory, all boilers must undergo strict inspection and testing, including pressure testing, X-ray testing and debugging.

It has a very large steam space and a large amount of steam.

Large combustion chamber, high radiation surface, large heating area, greatly improving thermal efficiency.

High Efficiency Natural Gas Steam Boiler Parameter

Model			WNS0.5	WNS1	WNS1.5	WNS2	WNS3	WNS4	WNS6
Project		Unit	WNS0.5	WNS1	WNS1.5	WNS2	WNS3	WNS4	WNS6
Rated evaporation		t/h	0.5	1	1.5	2	3	4	6
Rated working pressure		MPa	0.7	1	1	1	1	1.25	1.25
Staturated steam temperature		℃	170	184	184	184	184	193	193
Fuel consumption	Light diesel oil	kg/h	35	70	105	140	210	260	390
	Natural gas	Nm³/h	40	80	120	160	240	280	420
	LPG	Nm³/h	15	30	45	60	90	120	180
	City gas	Nm³/h	85	170	250	340	510	680	1020
a Main steam valve diameter		DN	40	65	65	80	80	100	125
b Safety valve diameter		DN	40	50	50	40×2	40×2	50×2	65×2
c Inlet diamater		DN	25	25	40	40	40	50	50
d Blowoff Valve diameter		DN	40	40	40	50	50	50	50
e Chimney diameter		DN	250	300	350	400	450	500	650
Overall size	L	mm	3800	4500	4700	4800	5500	6310	7200
	L1	mm	3100	3200	3600	3800	4500	5230	5960
	W	mm	1900	2300	2800	2900	2900	2950	3190
	W1	mm	1000	1880	1900	2150	2350	2350	2650
	H	mm	2100	2680	2950	3250	3880	3120	3610
	H1	mm	1800	1980	2070	2250	2450	2530	2850
Weight		T	3.3	4.6	5.5	6.3	10.6	13.8	18.5

High Efficiency Natural Gas Steam Boiler Advantage

1 . Ample heating area

2 . Strong structural strength

3 . The water circulation system is reasonable

4 . Safe and efficient

High Efficiency Natural Gas Steam Boiler picture

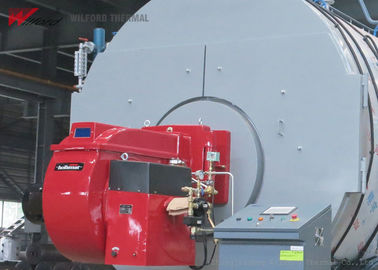

WNS6 6T/H High Efficiency LPG / Oil Fired Steam Boiler 0

Project case diagram

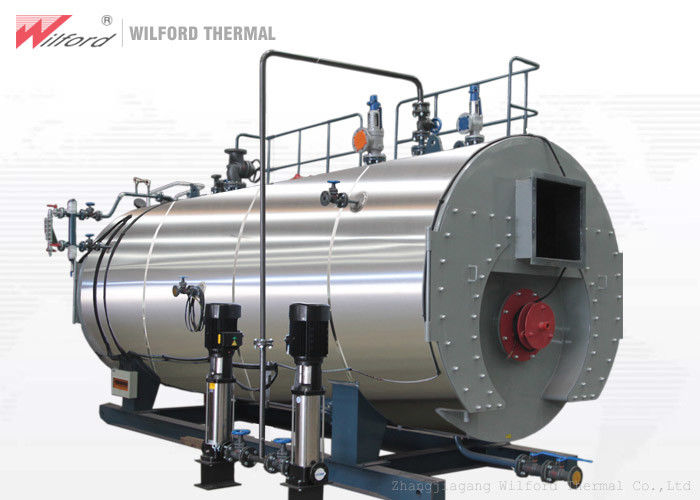

WNS6 6T/H High Efficiency LPG / Oil Fired Steam Boiler 1
