Product Details:
|
| Rated Evaporation: | 12-125kg/h | Rated Working Pressure: | 7bar |
|---|---|---|---|
| Staturated Steam Temperature: | 170℃ | Input Power: | 9-90KW |
| Input Current: | 14-135A | Usage: | Industrial |
| High Light: | portable electric steam generator,small electric steam generator |
||
Mini LDR Industrial Electric Steam Generator Used In Home / School
Product introduction
1 . The volume is small, the water capacity is less than 30L, and the local supervision and inspection can be avoided.
2 . There is an automatic water pump inside the body, which can also control the water level and pressure.
3 . The connection mode is flexible, and the steam output valve can be connected not only to the hard pipe but also to the steam hose.
4 . Use high quality heating tube, durable and long service life.
5 . The controller can automatically switch the heating tube and save energy.
6 . It can be applied to the condition that the medium is deionized water, and can be upgraded to PID pressure regulator.
7 . Simple operation, safe and reliable.
Parameter
| Model | LDR0.012-0.7 | LDR0.016-0.7 | LDR0.025-0.7 | LDR0.035-0.7 | LDR0.05-0.7 | LDR0.06-0.7 | LDR0.08-0.7 | LDR0.1-0.7 | LDR0.125-0.7 | ||
| Project | UNIT | ||||||||||
| Rated evaporation | Kg/h | 12 | 16 | 25 | 35 | 50 | 60 | 80 | 100 | 125 | |
| Rated working pressure | MPa | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | |
| Saturated steam temperature | ℃ | 170 | 170 | 170 | 170 | 170 | 170 | 170 | 170 | 170 | |
| Input power | KW | 9 | 12 | 18 | 27 | 36 | 40 | 54 | 72 | 90 | |
| Input current | A | 14 | 18 | 27 | 41 | 54 | 60 | 81 | 108 | 135 | |
| Rated voltage | V | 3N AC 50Hz 380V | |||||||||
| a Main steam valve diameter | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 25 | 25 | |
| b Safety valve diameter | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 25 | 25 | |
| c Inlet diamater | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | |
| d Blowoff valve diameter | DN | 150 | 15 | 15 | 15 | 15 | 15 | 15 | 20 | 20 | |
Overall size |
L | mm | 600 | 600 | 680 | 680 | 750 | 750 | 750 | 750 | 750 |
| W | mm | 540 | 540 | 600 | 600 | 600 | 680 | 680 | 660 | 660 | |
| H | mm | 800 | 800 | 950 | 950 | 1200 | 1200 | 1200 | 1450 | 1450 | |
| Weight | kg | 86 | 95 | 105 | 115 | 130 | 150 | 160 | 180 | 195 | |

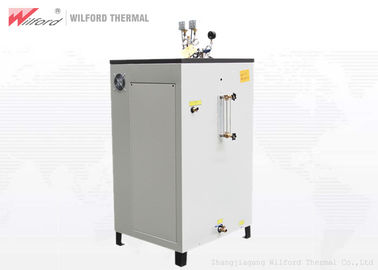

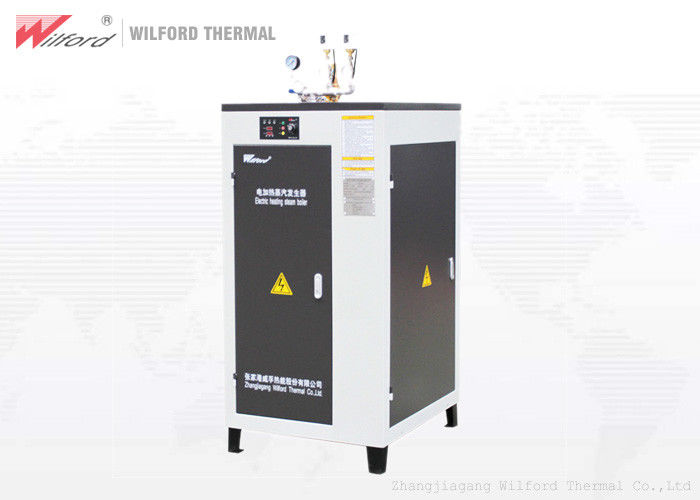

Product picture
Feature
Project case diagram
