Product Details:
|
| Rated Evaporation: | 12-35kg/h | Rated Working Pressure: | 0.7Mpa |
|---|---|---|---|
| Input Power: | 9-24KW | Input Current: | 14-36A |
| Type: | Natural Circulation | Dimension(L*W*H): | Depends |
| Highlight: | portable electric steam generator,mini electric steam generator |
||
Low Pressure Vertical Electric Heating Steam Generator For Cooking
Product introduction
1 . Regarding the electric heating steam generator, its water capacity is very small, and it can also eliminate complicated procedures.
2 . It is characterized by compact structure, small size, easy to install and move.
3 . It has automatic water level control and pressure control function, which can work continuously and continuously.
4 . The advanced controller and high-quality heating pipe ensure the safe and long-term operation of the boiler.
5 . Advanced technology allows it to achieve a constant output of pressure, safe and efficient.
6 . Realize the automatic control interface, set a variety of protection systems internally, and the security is very high.
Parameter

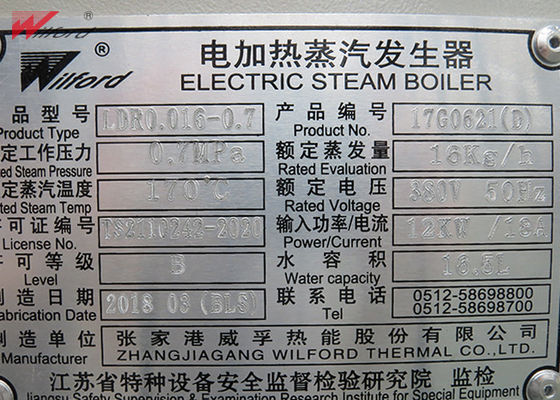

| Model | LDR0.012-0.7 | LDR0.016-0.7 | LDR0.025-0.7 | LDR0.035-0.7 | ||
| Project | UNIT | |||||
| Rated evaporation | Kg/h | 12 | 16 | 25 | 35 | |
| Rated working pressure | MPa | 0.7 | 0.7 | 0.7 | 0.7 | |
| Saturated steam temperature | ℃ | 170 | 170 | 170 | 170 | |
| Input power | KW | 9 | 12 | 18 | 27 | |
| Input current | A | 14 | 18 | 27 | 41 | |
| Rated voltage | V | 3N AC 50Hz 380V | ||||
| a Main steam valve diameter | DN | 15 | 15 | 15 | 15 | |
| b Safety valve diameter | DN | 15 | 15 | 15 | 15 | |
| c Inlet diamater | DN | 15 | 15 | 15 | 15 | |
| d Blowoff valve diameter | DN | 150 | 15 | 15 | 15 | |
Overall size |
L | mm | 600 | 600 | 680 | 680 |
| W | mm | 540 | 540 | 600 | 600 | |
| H | mm | 800 | 800 | 950 | 950 | |
| Weight | kg | 86 | 95 | 105 | 115 | |
Advantage

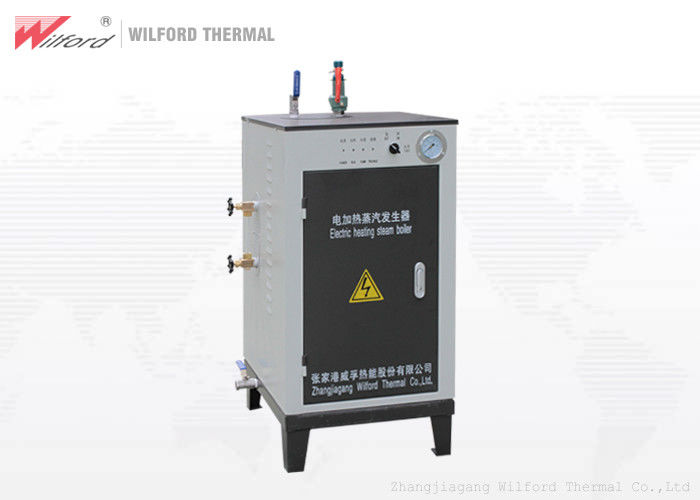

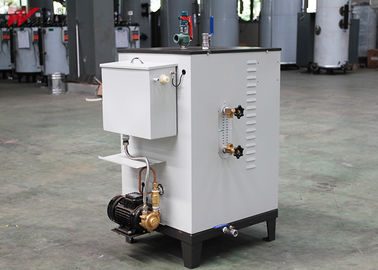

Product picture
Project case diagram
