Product Details:
|
| Rated Evaporation: | 1000-2000kg | Rated Working Pressure: | 0.7Mpa |
|---|---|---|---|
| Fuel Consumption: | 35kg/h | Overall Size: | The Models Are Different |
| Operation: | Fully Automatic | Usage: | Juice Beverage Machine |
| High Light: | 1T/H Oil Fired Condensing Boiler,Beverage Oil Fired Condensing Boiler,1T/H fire tube steam boiler |
||
1 T / H Evaporation Oil Fired Steam Boiler For Juice Beverage Machine
Oil Fired Steam Boiler introduction
Oil Fired Steam Boiler Parameter
| Type | LHS1 | LHS1.5 | LHS2 | ||
| Project | Unit | ||||
| Rated evaporation | t/h | 1 | 1.5 | 2 | |
| Rated working pressure | MPa | 1.0/1.25 | 1.0/1.25 | 1.0/1.25 | |
| Staturated steam temperature | ℃ | 184/193 | 184/193 | 184/193 | |
| Fuel consumption | Light diesel oil | kg/h | 70 | 105 | 140 |
| Natural gas | Nm³/h | 80 | 120 | 160 | |
| LPG | Nm³/h | 30 | 45 | 60 | |
| City gas | Nm³/h | 170 | 265 | 340 | |
| a Main steam valve diameter | DN | 50 | 65 | 80 | |
| b Safety valve diameter | DN | 50 | 50 | 40×2 | |
| c Inlet diamater | DN | 25 | 32 | 40 | |
| d Blowoff Valve diameter | DN | 40 | 40 | 40 | |
| e Chimney diameter | DN | 350 | 400 | 500 | |
| Overall size | L | mm | 1980 | 2045 | 2550 |
| W | mm | 1980 | 2220 | 2780 | |
| H | mm | 3080 | 3380 | 3620 | |
| H1 | mm | 2300 | 2650 | 2880 | |
| φDiameter | mm | 1380 | 1680 | 1980 | |
| Weight | T | 2.3/2.8 | 3.3/4 | 4.3/5.2 | |
Oil Fired Steam Boiler Advantage
1 . Burner adopts top burning type
2 . The flame process is long and full of combustion
3 . Reduce energy consumption
4 . Reduce operating costs
5 . Multiple data detection protection
6 . Compact structure and high combustion efficiency

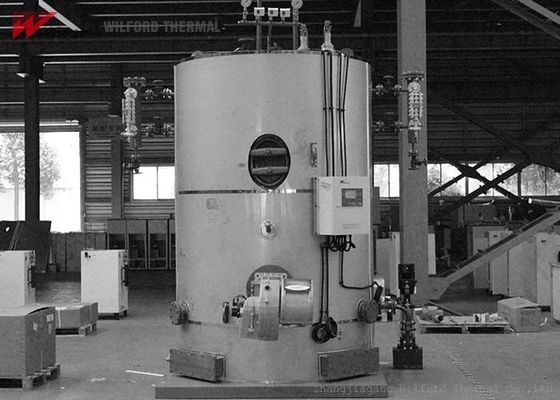

Oil Fired Steam Boiler picture
