Product Details:
|
| Rated Thermal Power: | 2.8-5.6MW | The Water Temperature: | 95-130℃ |
|---|---|---|---|
| Return Water Temperature: | 70℃ | Design Thermal Efficiency: | 80-82.3% |
| Fuel Consumption: | 693/1041.9/1089kg/h | Usage: | Heating |
| High Light: | domestic coal fired boilers,automatic water boiler |
||

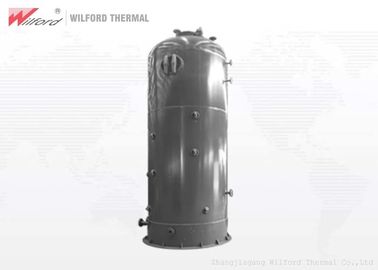

Vertical Industrial Coal Hot Water Boiler For Heating
Product introduction
Parameter
| Type | DZL0.7 | DZL1.4 | DZL2.8 | DZL4.2 | DZL5.6 | DZL7 | ||
| Project | Unit | |||||||
| Rated thermal power | MW | 0.7(600000 kcal/h) | 1.4(1.2 million kcal/h) | 2.8(2.4 million kcal/h) | 4.2(3.6 million kcal/h) | 5.6(4.8 million kcal/h) | 7(6million kcal/h) | |
| The rated steam pressure | Mpa | 0.7,1.0,1.25,1.6 | ||||||
| The water temperature/return water temperature | ℃ | 95/70,115/70,130/70 | ||||||
| Avaible fuel | (AⅡ) | |||||||
| Design the thermal efficiency | ％ | 80.2 | 80.8 | 80 | 82.3 | 80.3 | 80.8 | |
| The fuel consumption | Kg/h | 129 | 351.3 | 693 | 1041.9 | 1089 | 1707.8 | |
| Boiler installation structure | 5200*2100*3000 | 5525*2440*3400 | 6081*2450*3500 | 8000*2700*3550 | 8000*2900*3550 | 8980*3200*3600 | ||
Advantage
1 . Large furnace burning space
2 . Threaded pipe convection heating surface
3 . Backwater injection technology
4 . The grate is reliable
5 . The slag remover discharges the slag out of the furnace
6 . Equipped with dust collector and induced draft fan
7 . Good dust removal effect
8 . Easy installation and maintenance
