Product Details:
Place of Origin: China
Brand Name: WILFORD
Certification: CE
Model Number: LSS
Payment & Shipping Terms:
Minimum Order Quantity: 1 stand
Price: Negotiable
Packaging Details: Export wooden Packing
Delivery Time: 15-20 working days
Payment Terms: L/C, T/T
Supply Ability: 10 stand/stands per Month

Tofu Machine Oil Fired Steam Generator , Full Automatic Steam Generator

Description
Rated Evaporation: 0.05-0.125T/h Staturated Steam Temperature: 170℃
Rated Working Pressure: 0.7Mpa Fuel: Light Diesel Oil
Dimension(L*W*H): Depends Operation: Full Automatic
High Light:

diesel steam generator

,

laboratory steam generator





Small Capacity Oil Fired Steam Generator For Tofu Machine





Product introduction



  • The newly designed steam generator has small capacity, small volume and built-in furnace.



  • Vertical structure, the flame extends from top to bottom, and the long flame burns fully.



  • Using full premixed combustion technology, the combustion is more complete, the thermal efficiency is high, and the energy consumption is low.



  • Fully automatic control, with multi-chain protection such as water level and steam pressure.



  • Vertical compact, elegant, colorful, small size, easy to install.




Parameter



Model LSS0.05-0.7-Y.Q LSS0.1-0.7-Y.Q LSS0.125-0.7-Y.Q
Project Unit
Rated evaporation Kg/h 50 100 125
Rated working pressure MPa 0.7 0.7 0.7
Staturated steam temperature 170 170 170
Fuel consumption Light diesel oil kg/h 3.5 6.8 8.5
Natural gas Nm³/h 3.5 7 8.75
LPG Nm³/h 1.5 3 3.8
City gas Nm³/h 8.5 18 22.5
Water capacity L 29 49.3 49.6
a Main steam valve diameter DN 15 25 25
b Safety valve diameter DN 20 20 20
c Inlet diamater DN 15 15 15
d Blowoff Valve diameter DN 20 20 20
Chimney diameter DN 80 125 125
Overall size L mm 820 880 900
W mm 890 1100 1150
H mm 1600 1800 1900
φ Diameter mm 600 650 650
Weight kg 180 220 240




Advantage



1 . Thermal efficiency is close to 100%


2 . Built-in steam-water separation technology


3 . Heat absorption evenly


4 . Fully burned


5 . Low energy consumption


6 . Low pollution index

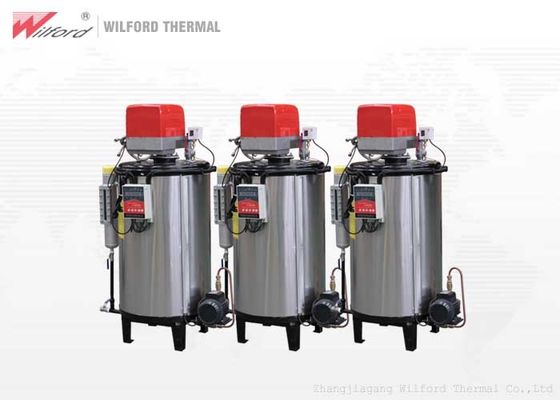

Product picture



Tofu Machine Oil Fired Steam Generator , Full Automatic Steam Generator 0




Project case diagram



Tofu Machine Oil Fired Steam Generator , Full Automatic Steam Generator 1
