Product Details:
|
| Rated Thermal Power: | 0.06-0.17MW | Total Heating Capacity: | 50000-150000kcal |
|---|---|---|---|
| Water Inlet Diameter: | 50-65DN | Water Outlet Diameter: | 50-35DN |
| Input Power: | 60-180KW | Input Current: | 90-270A |
| High Light: | industrial hot water boiler,electric hot water boiler |
||
High - Performance Durable Electric Hot Water Boiler For Hotel Cleaning
Product introduction
1. It belongs to a small electric heating hot water boiler, which uses electricity as a heat source, clean, environmentally friendly and safe.
2. It adopts electromechanical integrated design, which is easy to install and move.
3. Generally, we use stainless steel or imported alloy steel material electric heating tube, which has a long service life.
4. No smoke exhaust, the heat loss is extremely low, greatly improving the thermal efficiency.
5. The boiler controller has very good performance, built-in branch circuit fuse protection, isolated power transformer and so on.
6. Fully automatic control, with automatic alarm, electric heating element stepping and cutting and other multiple protection devices.
Parameter
| Type | CLDR0.06-95/70 | CLDR0.12-95/70 | CLDR0.17-95/70 | ||
| Project | Unit | ||||
| Rated thermal power | MW | 0.06 | 0.12 | 0.17 | |
| Total heating capacity | 104kcal | 5 | 10 | 15 | |
| Rated working pressure | MPa | Ordinary Pressure | |||
| Input Power | KW | 60 | 120 | 180 | |
| Input current | A | 90 | 180 | 270 | |
| Rated Voltage | V | 3N AC 50HZ 380V | |||
| Power×Group | KW×P | 20×3 | 20×6 | 30×6 | |
| Water inlet diameter | DN | 50 | 65 | 65 | |
| Water outlet diameter | DN | 50 | 65 | 65 | |
| Blowoff valve diameter | DN | 25 | 25 | 25 | |
| Overall size | Length | mm | 750 | 920 | 960 |
| Width | mm | 900 | 820 | 860 | |
| Height | mm | 1020 | 1200 | 1400 | |
| Weight | kg | 210 | 245 | 310 | |
Feature

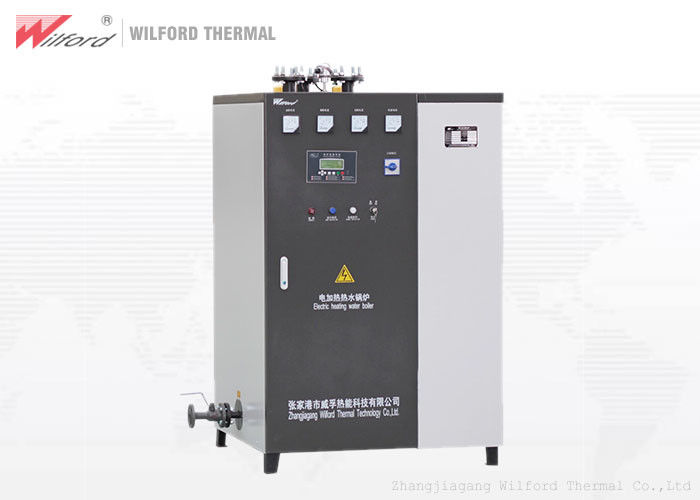

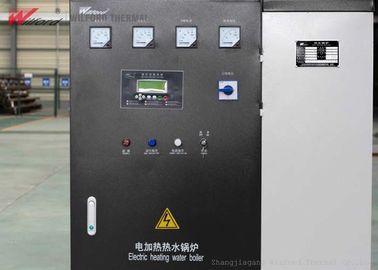

Product picture
