Product Details:
|
| The Rated Steam Pressure: | 0.7,1.0,1.25,1.6Mpa | The Water Temperature/return Water Temperature: | 95/70,115/70,130/70℃ |
|---|---|---|---|
| High Light: | coal fired hot water boiler,domestic coal fired boilers |
||
| Product introduction |
Water circulation boiler for progress on natural circulation and ejector,the left and right side wall as the radiation heating surface,the two wings of the convection heating surface,the drum arranged within the thread smoke tube boiler convection heating surface,with the smoke wall separation into front into a combustion chamber for combustion chamber,a boiler host outside stereo shaped guard plate shell.
The boiler adopts the latest research results,such as:arched tube plate,screw thread smoke tube,hot water boiler backwater ejection technology,solves the pot type boiler tube plate crack at the lower part of the drum,drum kits,water wall tube,the thermal efficiency is low,low output,poor adaptability of coal.
Combustion:fuel from coal scuttle fell in front of the stove grate,freight,coal preheated dry leave,ignition,combustion,the slag into the slag bucket,by removing machine always passes out of the furnace.Furnace arch adopts herringbone arch,improve the conditions for ignition,gas in the front,rear arch between the throat to from a vortex fully mixed with the air,combustion ,and then enter the two wings flue,through the front smoke box into the thread smoke tube,the cast iron economizer(hot water boiler without a cast iron economizer)dust collextor,discharged by lead fan and chimney.
| Parameter |
The main technical parameters of DZL series coal fired hot water boiler
| Type | DZL0.7 | DZL1.4 | DZ.8 | DZL4.2 | DZL5.6 | DZL7 | ||
| Project | Unit | |||||||
| Rated thermal power | MW | 0.7(600000 kcal/h) | 1.4(1.2 million kcal/h) | 2.8(2.4 million kcal/h) | 4.2(3.6 million kcal/h) | 5.6(4.8 million kcal/h) | 7(6million kcal/h) | |
| The rated steam pressure | Mpa | 0.7,1.0,1.25,1.6 | ||||||
| The water temperature/return water temperature | ℃ | 95/70,115/70,130/70 | ||||||
| Avaible fuel | AⅡ | |||||||
| Design the thermal efficiency | ％ | 80.2 | 80.8 | 80 | 82.3 | 80.3 | 80.8 | |
| The fuel consumption | Kg/h | 129 | 351.3 | 693 | 1041.9 | 1089 | 1707.8 | |
| The transport dimension L*W*H | mm | 5200*2100*3000 | 5525*2440*3400 | 6081*2450*3500 | 8000*2700*3550 | 8000*2900*3550 | 8980*3200*3600 | |
| Boiler installation structure | The fast | |||||||

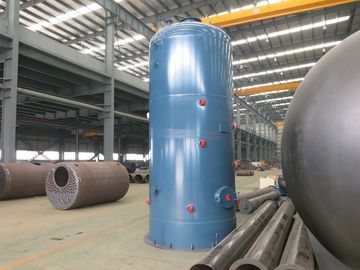

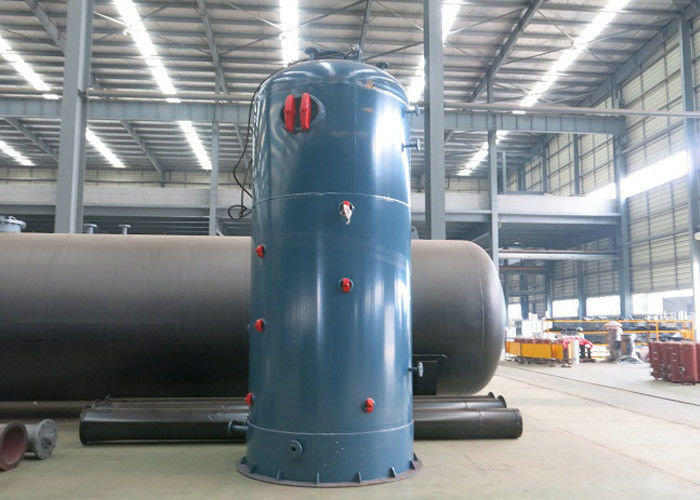

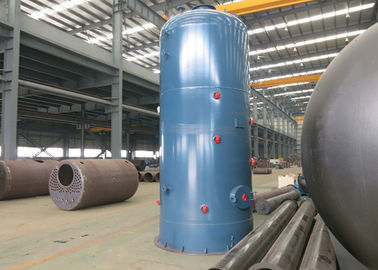

| Product picture |
