Product Details:
|
| Rated Evaporation: | 50kg/h | Rated Working Pressure: | 0.7Mpa |
|---|---|---|---|
| Fuel: | Natural Gas | Water Capacity: | 29L |
| Overall Size: | Depends | Usage: | Food Sterilization |
| High Light: | gas powered steam generator,lpg steam generator |
||
Small Natural Gas Fierd Steam Generator For Food Sterilization
Product introduction
Parameter
| Model | LSS0.05-0.7-Y.Q | LSS0.1-0.7-Y.Q | LSS0.125-0.7-Y.Q | ||
| Project | Unit | ||||
| Rated evaporation | Kg/h | 50 | 100 | 125 | |
| Rated working pressure | MPa | 0.7 | 0.7 | 0.7 | |
| Staturated steam temperature | ℃ | 170 | 170 | 170 | |
| Fuel consumption | Light diesel oil | kg/h | 3.5 | 6.8 | 8.5 |
| Natural gas | Nm³/h | 3.5 | 7 | 8.75 | |
| LPG | Nm³/h | 1.5 | 3 | 3.8 | |
| City gas | Nm³/h | 8.5 | 18 | 22.5 | |
| Water capacity | L | 29 | 49.3 | 49.6 | |
| a Main steam valve diameter | DN | 15 | 25 | 25 | |
| b Safety valve diameter | DN | 20 | 20 | 20 | |
| c Inlet diamater | DN | 15 | 15 | 15 | |
| d Blowoff Valve diameter | DN | 20 | 20 | 20 | |
| Chimney diameter | DN | 80 | 125 | 125 | |
| Overall size | L | mm | 820 | 880 | 900 |
| W | mm | 890 | 1100 | 1150 | |
| H | mm | 1600 | 1800 | 1900 | |
| φ Diameter | mm | 600 | 650 | 650 | |
| Weight | kg | 180 | 220 | 240 | |
Advantage
1 . Small water volume
2 . Thermal efficiency can be close to 100%
3 . Fast start speed
4 . Excellent steam quality
5 . Endothermic balance

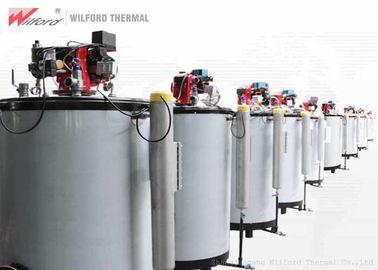

Product picture
Project case diagram
