Product Details:
|
| Rated Evaporation: | 50-125kg/h | Rated Working Pressure: | 0.7Mpa |
|---|---|---|---|
| Staturated Steam Temperature: | 170℃ | Water Capacity: | 29-49.6L |
| Fuel: | Gas | Usage: | Industrial |
| High Light: | natural gas steam generator,lpg steam generator |
||
Widely Used Mini Gas Fired Steam Generator For Industry
Product introduction
1 . Mini gas fired steam generator boiler has a normal water level of 29L, which is exempt from inspection.
2 . High combustion efficiency, fast starting speed and convenient use.
3 . Install advanced energy saver to reduce waste of resources.
4 . The unique internal structure makes the heat absorption balance of each part and the heat transfer is sufficient.
5 . Simple structure, small footprint, beautiful appearance design, multiple installations and modular design.
Parameter
| Model(natural gas fired steam generator) | LSS0.05-0.7-Y.Q | LSS0.1-0.7-Y.Q | LSS0.125-0.7-Y.Q | ||
| Project | Unit | ||||
| Rated evaporation | Kg/h | 50 | 100 | 125 | |
| Rated working pressure | MPa | 0.7 | 0.7 | 0.7 | |
| Staturated steam temperature | ℃ | 170 | 170 | 170 | |
| Fuel consumption | Light diesel oil | kg/h | 3.5 | 6.8 | 8.5 |
| Natural gas | Nm³/h | 3.5 | 7 | 8.75 | |
| LPG | Nm³/h | 1.5 | 3 | 3.8 | |
| City gas | Nm³/h | 8.5 | 18 | 22.5 | |
| Water capacity | L | 29 | 49.3 | 49.6 | |
| a Main steam valve diameter | DN | 15 | 25 | 25 | |
| b Safety valve diameter | DN | 20 | 20 | 20 | |
| c Inlet diamater | DN | 15 | 15 | 15 | |
| d Blowoff Valve diameter | DN | 20 | 20 | 20 | |
| Chimney diameter | DN | 80 | 125 | 125 | |
| Overall size | L | mm | 820 | 880 | 900 |
| W | mm | 890 | 1100 | 1150 | |
| H | mm | 1600 | 1800 | 1900 | |
| φ Diameter | mm | 600 | 650 | 650 | |
| Weight | kg | 180 | 220 | 240 | |

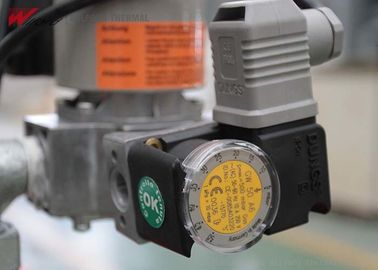

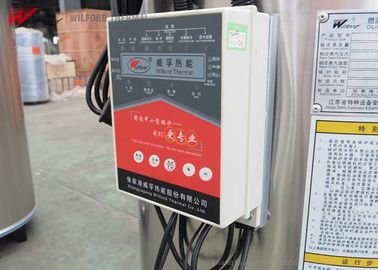

Advantage

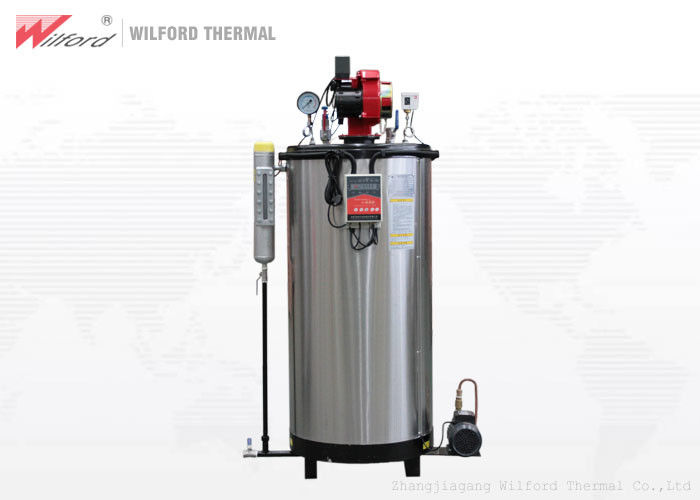

Product picture
Project case diagram(industrial steam generator)
