Product Details:
|
| Rated Evaporation: | 50-125kg | Water Capacity: | 29/49.3/49.6L |
|---|---|---|---|
| Safety Valve Diameter: | 20DN | Water Inlet Diameter: | 15DN |
| Blowoff Valve Diameter: | 20DN | Chimney Diameter: | 80/125/125DN |
| High Light: | oil steam generator,laboratory steam generator |
||
Small Size Industrial Professional Oil Fired Steam Generator For Sale
Product introduction
1 . The water volume of the above products is small, it can be exempted from inspection, and the speed of starting and stopping the furnace is fast.
2 . Increase the condensing device, and the structure of the furnace body has good heat absorption effect.
3 . The internal structure is reasonable and the structure is compact, which fully enhances the heat transfer of the flue gas and has high thermal efficiency.
4 . The use of high-quality energy-saving devices, to a certain extent, reduce the consumption of resources and reduce the cost of investment.
5 . In the aspects of water shortage protection, water level, steam pressure, flame detection, etc., multiple interlocking protection devices are installed, which has high safety.
6 . Since the installation area of the whole equipment is small and compact, it is possible to introduce multiple installations and use multiple boilers for networking.
Parameter
| Model | LSS0.05-0.7-Y.Q | LSS0.1-0.7-Y.Q | LSS0.125-0.7-Y.Q | ||
| Project | Unit | ||||
| Rated evaporation | Kg/h | 50 | 100 | 125 | |
| Rated working pressure | MPa | 0.7 | 0.7 | 0.7 | |
| Staturated steam temperature | ℃ | 170 | 170 | 170 | |
| Fuel consumption | Light diesel oil | kg/h | 3.5 | 6.8 | 8.5 |
| Natural gas | Nm³/h | 3.5 | 7 | 8.75 | |
| LPG | Nm³/h | 1.5 | 3 | 3.8 | |
| City gas | Nm³/h | 8.5 | 18 | 22.5 | |
| Water capacity | L | 29 | 49.3 | 49.6 | |
| a Main steam valve diameter | DN | 15 | 25 | 25 | |
| b Safety valve diameter | DN | 20 | 20 | 20 | |
| c Inlet diamater | DN | 15 | 15 | 15 | |
| d Blowoff Valve diameter | DN | 20 | 20 | 20 | |
| Chimney diameter | DN | 80 | 125 | 125 | |
| Overall size | L | mm | 820 | 880 | 900 |
| W | mm | 890 | 1100 | 1150 | |
| H | mm | 1600 | 1800 | 1900 | |
| φ Diameter | mm | 600 | 650 | 650 | |
| Weight | kg | 180 | 220 | 240 | |
Advantage

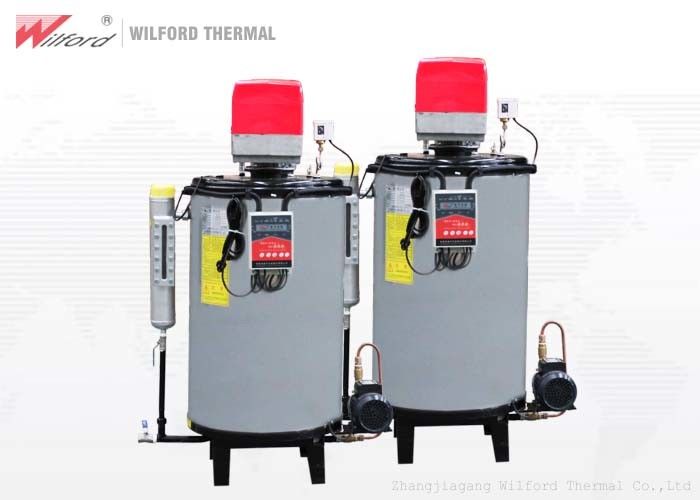

Product picture
Project case diagram
