Product Details:
|
Rated Evaporation: | 6-8T/h | Rated Steam Pressure: | 0.7-2.5Mpa |
---|---|---|---|
Feed Temperature: | 20-105℃ | Design Thermal Efficiency: | 80.3/80.5% |
Fuel Consumption: | 1089-1509kg/h | Dimension(L*W*H): | Depends |
High Light: | coal burning boiler,coal powered boiler |
Large Capacity Coal Fired Steam Boiler For industry
Product introduction
Parameter
Type | DZL1 | DZL2 | DZL3 | DZL4 | DZL6 | DZL8 | DZL10 | ||
Project | Unit | ||||||||
The enaporation | T/h | 1 | 2 | 3 | 4 | 6 | 8 | 10 | |
The rated steam pressure | Mpa | 0.7,1.0,1.25,1.6,2.5 | |||||||
The rated steam temperature | ℃ | 170,184,194,203,226 | |||||||
Feed temperature | ℃ | 20,60,105 | |||||||
Avaible fuel | Ⅱ(AⅡ) | ||||||||
Design the thermal efficiency | % | 80.2 | 80.1 | 80.3 | 80.6 | 80.3 | 80.5 | 80.6 | |
The fuel consumption | Kg/h | 181 | 378.4 | 493 | 723 | 1089 | 1509 | 1750 | |
The transport dimension L*W*H(mm) |
mm | 5200*2100*3000 | 5525*2440*3400 | 6300*2650*3400 | 6081*2575*3400 | 8000*2900*3550 | 7526*3340*4300 | 8980*3200*3550 |
Advantage
1 . Screw thread smoke tubestructure
2 . Low heat loss from flue gas
3 . Herringbone furnace arch design
4 . High combustion efficiency
5 . Energy saving and consumption reduction
6 . Low cost and easy installation

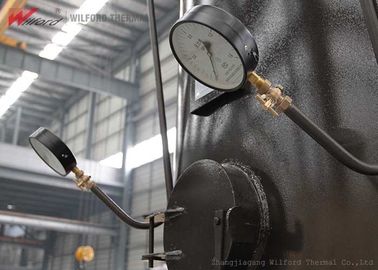

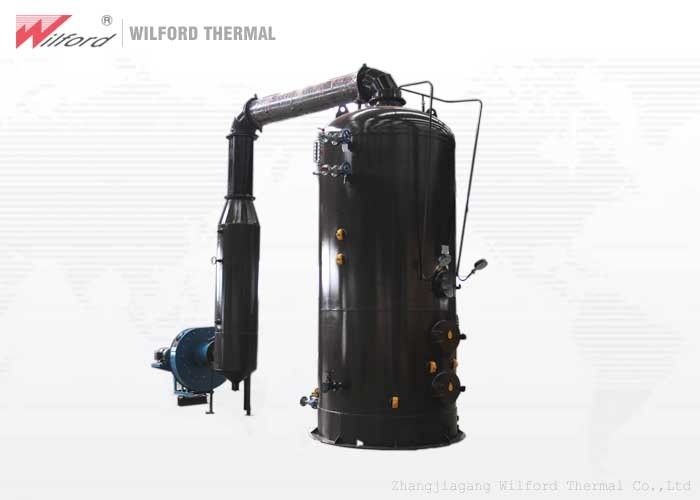

Product picture
