Product Details:
|
| Rated Thermal Power: | 0.7/1.4MW | The Rated Steam Pressure: | 0.7/1.0/1.25/1.6Mpa |
|---|---|---|---|
| The Water Temperature: | 95/115/130℃ | Design Thermal Efficiency: | 80.2/80.8% |
| Safety: | Safe | Operation: | Automatic |
| High Light: | coal fired hot water boiler,domestic coal fired boilers |
||

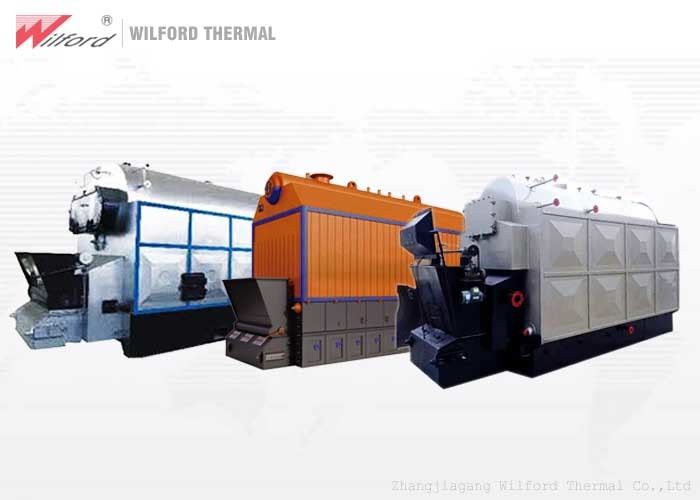

DZL Domestic Coal Hot Water Boiler For Get Heating
Product introduction
Parameter
| Type | DZL0.7 | DZL1.4 | DZL2.8 | DZL4.2 | DZL5.6 | DZL7 | ||
| Project | Unit | |||||||
| Rated thermal power | MW | 0.7(600000 kcal/h) | 1.4(1.2 million kcal/h) | 2.8(2.4 million kcal/h) | 4.2(3.6 million kcal/h) | 5.6(4.8 million kcal/h) | 7(6million kcal/h) | |
| The rated steam pressure | Mpa | 0.7,1.0,1.25,1.6 | ||||||
| The water temperature/return water temperature | ℃ | 95/70,115/70,130/70 | ||||||
| Avaible fuel | (AⅡ) | |||||||
| Design the thermal efficiency | ％ | 80.2 | 80.8 | 80 | 82.3 | 80.3 | 80.8 | |
| The fuel consumption | Kg/h | 129 | 351.3 | 693 | 1041.9 | 1089 | 1707.8 | |
| Boiler installation structure | 5200*2100*3000 | 5525*2440*3400 | 6081*2450*3500 | 8000*2700*3550 | 8000*2900*3550 | 8980*3200*3600 | ||
Advantage
1 . The volume of the furnace and the heating surface are larger
2 . Advanced herringbone furnace arch
3 . Use threaded pipe heat transfer to reduce energy consumption
4 . The design of the two-wing pipe avoids the crack of the tube sheet
5 . Arrange dust collectors to reduce soot emissions
6 . Smooth operation, no failure
