Product Details:
|
Rated Evaporation: | 2000KG/h | Rated Working Pressure: | 1bar |
---|---|---|---|
Fuel: | Diesel Oil | Weight: | 6.3T |
Overall Size: | 4800*2900*3250 | Usage: | Sealing Machine |
High Light: | 2T / H diesel fired steam boiler,4800*2900*3250mm furnace oil fired boiler |
2T / H Diesel Oil Fired Steam Boiler 4800*2900*3250mm For Cup Sealing Machine
Product introduction
Parameter
Model | WNS0.5 | WNS1 | WNS1.5 | WNS2 | WNS3 | WNS4 | WNS6 | ||
Project | Unit | ||||||||
Rated evaporation | t/h | 0.5 | 1 | 1.5 | 2 | 3 | 4 | 6 | |
Rated working pressure | MPa | 0.7 | 1 | 1 | 1 | 1 | 1.25 | 1.25 | |
Staturated steam temperature | ℃ | 170 | 184 | 184 | 184 | 184 | 193 | 193 | |
Fuel consumption | Light diesel oil | kg/h | 35 | 70 | 105 | 140 | 210 | 260 | 390 |
Natural gas | Nm³/h | 40 | 80 | 120 | 160 | 240 | 280 | 420 | |
LPG | Nm³/h | 15 | 30 | 45 | 60 | 90 | 120 | 180 | |
City gas | Nm³/h | 85 | 170 | 250 | 340 | 510 | 680 | 1020 | |
a Main steam valve diameter | DN | 40 | 65 | 65 | 80 | 80 | 100 | 125 | |
b Safety valve diameter | DN | 40 | 50 | 50 | 40×2 | 40×2 | 50×2 | 65×2 | |
c Inlet diamater | DN | 25 | 25 | 40 | 40 | 40 | 50 | 50 | |
d Blowoff Valve diameter | DN | 40 | 40 | 40 | 50 | 50 | 50 | 50 | |
e Chimney diameter | DN | 250 | 300 | 350 | 400 | 450 | 500 | 650 | |
Overall size | L | mm | 3800 | 4500 | 4700 | 4800 | 5500 | 6310 | 7200 |
L1 | mm | 3100 | 3200 | 3600 | 3800 | 4500 | 5230 | 5960 | |
W | mm | 1900 | 2300 | 2800 | 2900 | 2900 | 2950 | 3190 | |
W1 | mm | 1000 | 1880 | 1900 | 2150 | 2350 | 2350 | 2650 | |
H | mm | 2100 | 2680 | 2950 | 3250 | 3880 | 3120 | 3610 | |
H1 | mm | 1800 | 1980 | 2070 | 2250 | 2450 | 2530 | 2850 | |
Weight | T | 3.3 | 4.6 | 5.5 | 6.3 | 10.6 | 13.8 | 18.5 |
Advantage
1 . Unique design structure
2 . Three-return structure
3 . Using a large combustion chamber
4 . Steam boiler adopt Wave shape furnace design
5 . Low heat loss

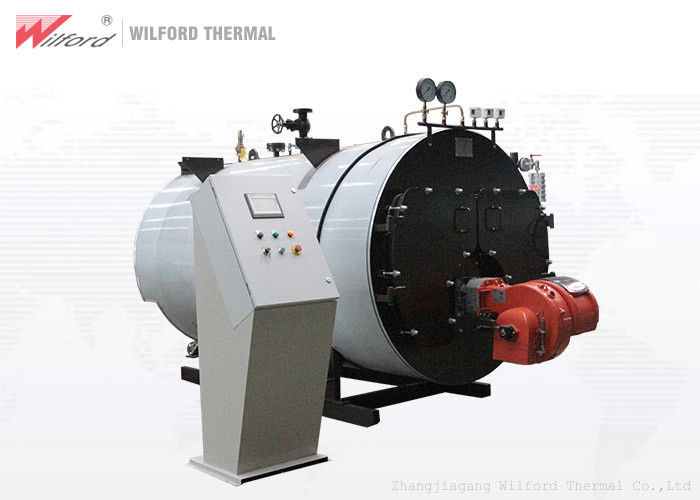

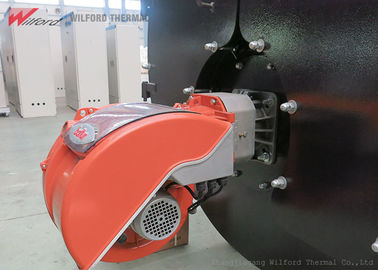

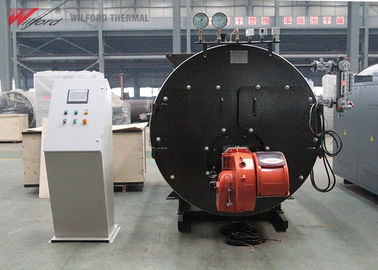

Product picture
Project case diagram
FAQ
Q : Are you a factory or a trading company?
A : We are a 20 years old industrial boiler factory, specializing in gas oil diesel electric fired boilers.
Q : What is the Warranty for the boilers?
A : Our steam boiler warranty is one year, During the warranty period, any parts damaged, you can get a new parts for free.
Q : How long should we wait for delivery?
A : Usually it will take about 35-45 days for pressured boilers, If you need to change the voltage or pressure, it need more time.
Q : What about your payment term?
A : Usually it would be 30% deposit payment, 70% balance before delivery. We accept T/T, L/C and other payment way.
