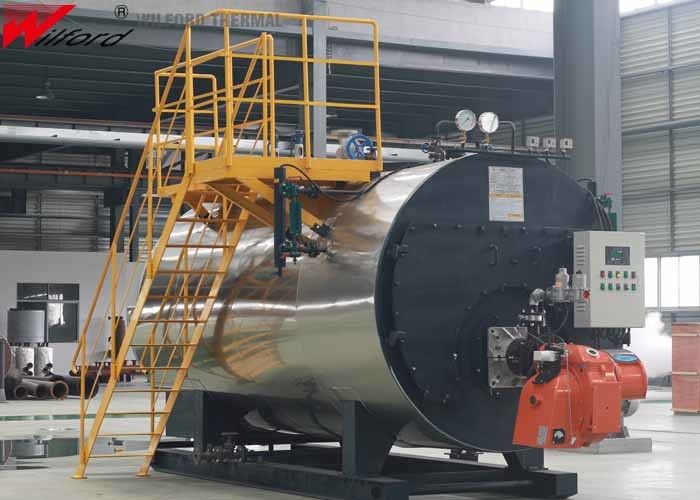

Pre Purge 1MPa Natural Gas Oil Fired Steam Boiler

Pre Purge 1MPa Natural Gas Oil Fired Steam Boiler
Pre Purge 1MPa Natural Gas Oil Fired Steam Boiler Pre Purge 1MPa Natural Gas Oil Fired Steam Boiler Pre Purge 1MPa Natural Gas Oil Fired Steam Boiler

Large Image :  Pre Purge 1MPa Natural Gas Oil Fired Steam Boiler

Product Details:
Place of Origin: China
Brand Name: WILFORD
Certification: CE
Model Number: WNS
Payment & Shipping Terms:
Minimum Order Quantity: 1 stand
Price: Negotiable
Packaging Details: Packing in wooden box
Delivery Time: 15-20 working days
Payment Terms: L/C, T/T
Supply Ability: 25 stand/stands per Month

Pre Purge 1MPa Natural Gas Oil Fired Steam Boiler

Description
Rated Evaporation: 1-20T/h Rated Working Pressure: 1/1.25MPa
Type: Horizontal Fuel: Natural Gas,Diesel Oil
Usage: Industrial,Steam Outputing Structure: Fire Tube
Condition: New Dimension(l*w*h): Depends
After-sales Service Provided: Engineers Available To Service Machinery Overseas Warranty: 1 Year
Product Name: Fully Automatic Fire Tube Industrial Oil Gas Steam Boiler Application: Food,textile,School,Machinery Industry,eps Machine
High Light:

1MPa Oil Fired Steam Boiler

,

Pre Purge Oil Steam Boiler

,

Water Circulation Fired Steam Boiler



Gas / Oil Fired Steam Boiler For Industry Export Boiler





Steam Boiler introduction

  • Industrial steam boiler have Large steam room and high quality steam.



  • Pre purge function, improve the working conditions of the burner and prolong the service life .



  • Adopt waveform furnace enhance heat transfer and promote the combustion of fuel in the furnace.



  • The heating surface is arranged symmetrically with solid structural strength and reasonable water circulation .



  • Boiler furnace located at low position ,ensurethe safety range of the water level.Big steam evaporation surface, high quality steam .



Steam Boiler Parameter



Model WNS0.5 WNS1 WNS1.5 WNS2 WNS3 WNS4 WNS6 WNS8 WNS10
Project Unit
Rated evaporation t/h 0.5 1 1.5 2 3 4 6 8 10
Rated working pressure MPa 0.7 1 1 1 1 1.25 1.25 1.25 1.25
Staturated steam temperature 170 184 184 184 184 193 193 193 193
Fuel consumption Light diesel oil kg/h 35 70 105 140 210 260 390 520 650
Natural gas Nm³/h 40 80 120 160 240 280 420 560 700
LPG Nm³/h 15 30 45 60 90 120 180 240 300
City gas Nm³/h 85 170 250 340 510 680 1020 1360 1700
a Main steam valve diameter DN 40 65 65 80 80 100 125 150 150
b Safety valve diameter DN 40 50 50 40×2 40×2 50×2 65×2 80×2 80×2
c Inlet diamater DN 25 25 40 40 40 50 50 65 65
d Blowoff Valve diameter DN 40 40 40 50 50 50 50 50 50
e Chimney diameter DN 250 300 350 400 450 500 650 800 900
Overall size L mm 3800 4500 4700 4800 5500 6310 7200 7780 8330
L1 mm 3100 3200 3600 3800 4500 5230 5960 6320 7040
W mm 1900 2300 2800 2900 2900 2950 3190 3440 3475
W1 mm 1000 1880 1900 2150 2350 2350 2650 2980 3040
H mm 2100 2680 2950 3250 3880 3120 3610 3700 3800
H1 mm 1800 1980 2070 2250 2450 2530 2850 2920 3050
Weight T 3.3 4.6 5.5 6.3 10.6 13.8 18.5 20 23





Steam Boiler Parameter





Model WNS8 WNS10 WNS12 WNS15 WNS20
Item unit
Rated evaporation T/h 8 10 12 15 20
Rated working pressure Mpa 1.25 1.25 1.25 1.25 1.25
Staturated steam temperature 193 193 193 193 193
Weight T 18.4 23 30.1 36.5 49.5
fuelconsumption diesel oil Kg/h 480 600 720 900 1200
natural gas Nm3/h 614 766 921 1140 1525
LPG L/h 957 1194 1435 1777 2377
a main steam valve mm 150 150 200 200 250
b safety valve mm 65×2 80×2 80×2 80×2 80×2
c water inlet mm 50 50 65 65 80
d drain valve mm 50 50 65 65 65
e chimney mm 650 750 1000 1000 1250
Overall size L mm 7950 8600 8740 10730 11250
W mm 3200 3400 7450 8110 8360
H mm 4100 4300 3475 3850 4395
Transportation size L1 mm 6700 7350 2700 2950 3250
W1 mm 2600 2800 4050 4210 4650
H1 mm 3070 3470 3280 3510 3820





Steam Boiler Product Size



Pre Purge 1MPa Natural Gas Oil Fired Steam Boiler 0



Steam Boiler Product System Installation Drawings



Pre Purge 1MPa Natural Gas Oil Fired Steam Boiler 1





Steam Boiler



  • Wilford company is specialized in manufacturing and selling steam boiler for many years .



  • Our worker have experience to produce machines professional and skilled,so the machine workes well with high quality.



  • All parts of our machines are famous brand in China or in international,so it make sure our machine have high quality with long lifetime.



  • Our company provides 24 hours online services and technical supports for customers.
