Product Details:
|
Rated Evaporation: | 1-20T/h | Rated Working Pressure: | 1/1.25MPa |
---|---|---|---|
Type: | Horizontal | Fuel: | Natural Gas,Diesel Oil |
Usage: | Industrial,Steam Outputing | Structure: | Fire Tube |
Condition: | New | Dimension(l*w*h): | Depends |
After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Warranty: | 1 Year |
Product Name: | Fully Automatic Fire Tube Industrial Oil Gas Steam Boiler | Application: | Food,textile,School,Machinery Industry,eps Machine |
High Light: | 20T/H Gas Oil Boiler,Fire Tube Gas Oil Boiler,CE Horizontal Steam Boiler |
1-20T/H Steam Capacity Oil / Gas Fired Steam Boiler
Gas/Oil Fried Steam Boiler introduction
Gas/Oil Fried Steam Boiler Parameter
Model | WNS0.5 | WNS1 | WNS1.5 | WNS2 | WNS3 | WNS4 | WNS6 | WNS8 | WNS10 | ||
Project | Unit | ||||||||||
Rated evaporation | t/h | 0.5 | 1 | 1.5 | 2 | 3 | 4 | 6 | 8 | 10 | |
Rated working pressure | MPa | 0.7 | 1 | 1 | 1 | 1 | 1.25 | 1.25 | 1.25 | 1.25 | |
Staturated steam temperature | ℃ | 170 | 184 | 184 | 184 | 184 | 193 | 193 | 193 | 193 | |
Fuel consumption | Light diesel oil | kg/h | 35 | 70 | 105 | 140 | 210 | 260 | 390 | 520 | 650 |
Natural gas | Nm³/h | 40 | 80 | 120 | 160 | 240 | 280 | 420 | 560 | 700 | |
LPG | Nm³/h | 15 | 30 | 45 | 60 | 90 | 120 | 180 | 240 | 300 | |
City gas | Nm³/h | 85 | 170 | 250 | 340 | 510 | 680 | 1020 | 1360 | 1700 | |
a Main steam valve diameter | DN | 40 | 65 | 65 | 80 | 80 | 100 | 125 | 150 | 150 | |
b Safety valve diameter | DN | 40 | 50 | 50 | 40×2 | 40×2 | 50×2 | 65×2 | 80×2 | 80×2 | |
c Inlet diamater | DN | 25 | 25 | 40 | 40 | 40 | 50 | 50 | 65 | 65 | |
d Blowoff Valve diameter | DN | 40 | 40 | 40 | 50 | 50 | 50 | 50 | 50 | 50 | |
e Chimney diameter | DN | 250 | 300 | 350 | 400 | 450 | 500 | 650 | 800 | 900 | |
Overall size | L | mm | 3800 | 4500 | 4700 | 4800 | 5500 | 6310 | 7200 | 7780 | 8330 |
L1 | mm | 3100 | 3200 | 3600 | 3800 | 4500 | 5230 | 5960 | 6320 | 7040 | |
W | mm | 1900 | 2300 | 2800 | 2900 | 2900 | 2950 | 3190 | 3440 | 3475 | |
W1 | mm | 1000 | 1880 | 1900 | 2150 | 2350 | 2350 | 2650 | 2980 | 3040 | |
H | mm | 2100 | 2680 | 2950 | 3250 | 3880 | 3120 | 3610 | 3700 | 3800 | |
H1 | mm | 1800 | 1980 | 2070 | 2250 | 2450 | 2530 | 2850 | 2920 | 3050 | |
Weight | T | 3.3 | 4.6 | 5.5 | 6.3 | 10.6 | 13.8 | 18.5 | 20 | 23 |
Gas/Oil Fried Steam Boiler Parameter
Model | WNS8 | WNS10 | WNS12 | WNS15 | WNS20 | ||
Item | unit | ||||||
Rated evaporation | T/h | 8 | 10 | 12 | 15 | 20 | |
Rated working pressure | Mpa | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | |
Staturated steam temperature | ℃ | 193 | 193 | 193 | 193 | 193 | |
Weight | T | 18.4 | 23 | 30.1 | 36.5 | 49.5 | |
fuelconsumption | diesel oil | Kg/h | 480 | 600 | 720 | 900 | 1200 |
natural gas | Nm3/h | 614 | 766 | 921 | 1140 | 1525 | |
LPG | L/h | 957 | 1194 | 1435 | 1777 | 2377 | |
a main steam valve | mm | 150 | 150 | 200 | 200 | 250 | |
b safety valve | mm | 65×2 | 80×2 | 80×2 | 80×2 | 80×2 | |
c water inlet | mm | 50 | 50 | 65 | 65 | 80 | |
d drain valve | mm | 50 | 50 | 65 | 65 | 65 | |
e chimney | mm | 650 | 750 | 1000 | 1000 | 1250 | |
Overall size | L | mm | 7950 | 8600 | 8740 | 10730 | 11250 |
W | mm | 3200 | 3400 | 7450 | 8110 | 8360 | |
H | mm | 4100 | 4300 | 3475 | 3850 | 4395 | |
Transportation size | L1 | mm | 6700 | 7350 | 2700 | 2950 | 3250 |
W1 | mm | 2600 | 2800 | 4050 | 4210 | 4650 | |
H1 | mm | 3070 | 3470 | 3280 | 3510 | 3820 |

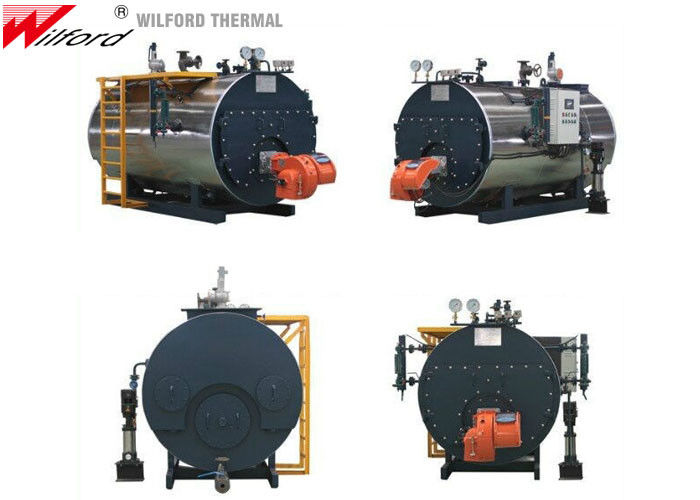

Gas/Oil Fried Steam Boiler picture
Gas/Oil Fried Steam Boiler Project case diagram

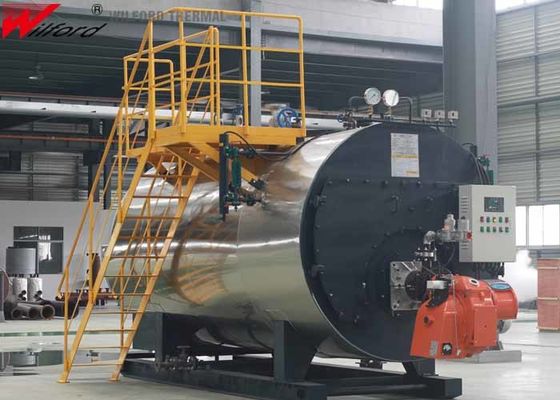

Gas/Oil Fried Steam Boiler Factory
Gas/Oil Fried Steam Boiler After-sale service
For each user, we have detailed understanding and analysis of their different production environment and the shortage of the products, so that to provide reasonable technical solution and timely after-sales service.We attach great importance to the effective operation of boiler product system to provide customers with solutions to problems, at the same time to sent experienced engineer to on-site guidance.The company has accumulated rich experience in the scene to deal with problems,which provides strong technical support and perfect after-sales service to the equipment we manufactured.Only users success is our success !
